AVID HiFi Isorak Equipment Support 3 Legs Per Tier

0 Reviews


Type: Hi Fi Racks

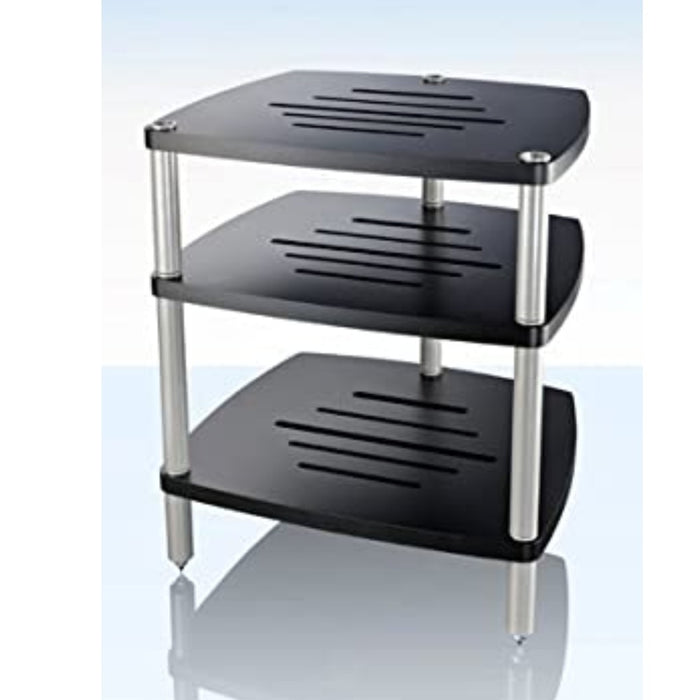

AVID HiFi Isorak Equipment Support 3 Legs per tier

Pricing is PER SHELF, each shelf comes with 1 set of legs included.

Only Black shelves & Silver poles available.

Isorak offers a high quality solution for audio equipment support allowing the heights and number of shelves to be tailored to suit individual installations. In building a hi-fi system that is capable of extracting the optimum performance from each component, the importance of the support system cannot be overstated.

Each shelf is precision machined, in either 30mm MDF or 26mm Oak veneered MDF - profiled to dissipate vibrations and prevent standing waves from forming. The usual configuration for stability is always three legs, however our four leg system allows easy access to certain types of equipment where the rear third leg is an obstruction, but still remaining stable as each spun 40mm solid aluminium leg is machined to a 0.1mm tolerance. Each solid aluminium leg is isolated at each termination point using our unique ball contact system.

Purchased individually, each shelf simply stacks onto each other above the base section.

Choose your Isorak colour, choose your leg height and colour, assemble and stack, designing to your own requirements.

Five different lengths of leg are available, allowing a support system to be constructed to match virtually any combination of hi-fi components.

Features include:

  • Thick solid shelves with resonance diffusion slots
  • Solid aluminium support poles
  • Steel bearing separation points
  • Incorporated cable management
  • Custom leg lengths available
  • Flat pack design

Exquisitely finished shelves in either Satin Black or Heritage Oak with support poles in metallic Silver or Black.

Specifications - Isorak


: 650.0mm


: 560.0mm

Pole heights

: 135 - 165 - 205 - 245 - 305mm

Bottom pole height

: 135.0mm

Max. Tested load

: 100 Kgs (220 Lbs)


: (shelf) 750 x 640 x 45mm (WxDxH)

: (poles) 210 x 380 x 60mm (WxDxH)

Shipping weight

: (shelf) 8.0 KG (18Lbs)

: (poles) 5.0 KG (11Lbs)
