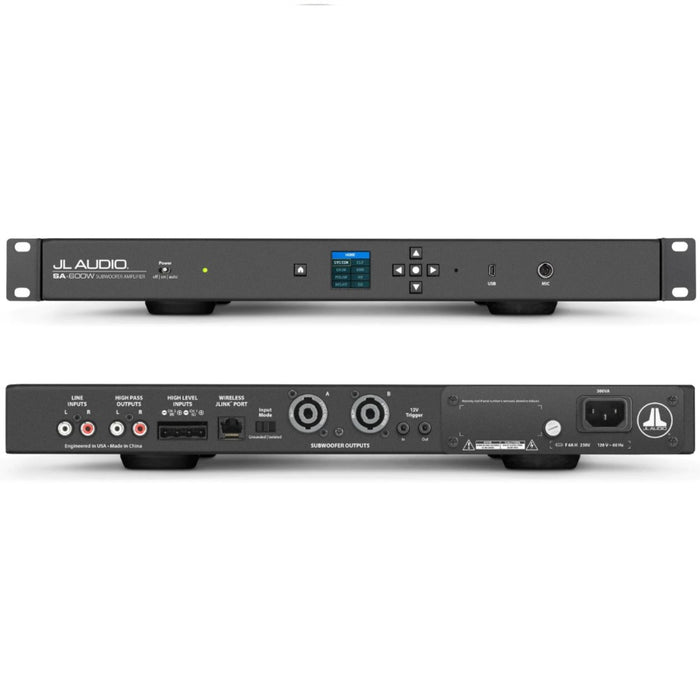

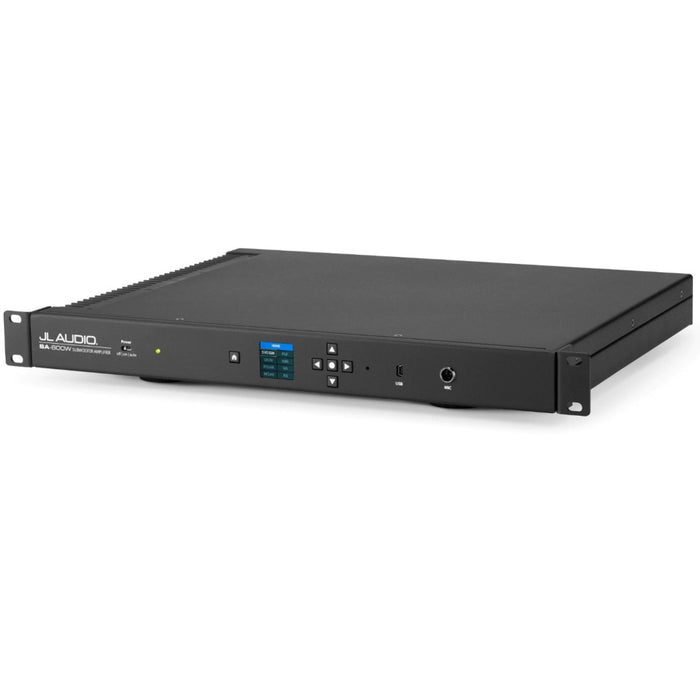

JL Audio SA-600W-240V Subwoofer Amplifier

0 Reviews

JL Audio


Type: Amplifiers

JL Audio SA-600W-240V Subwoofer Amplifier

Engineered with powerful features and versatile functionality, the Fathom SA-600W is a state-of-the-art amplifier designed to power a top-flight subwoofer system in home theater and home audio systems.

Utilizing a precisely-engineered switching power supply, the SA-600W is capable of efficiently generating unclipped output voltages equivalent to 600 watts of RMS power, while remaining calm and stable. Managing all of the SA-600W’s on-board features is an intuitively designed interface for adjusting all settings and controls with ease.

Key Features

  • Intuitive interface with LCD display provides detailed control of on-board settings and functions
  • Pristine, stereo audio circuit pathways used throughout
  • On-board, 2-way active crossover (12/24 dB per octave), capable of supporting a conventional 2-channel audio system with a low-pass filtered subwoofer output and high-pass filtered outputs to feed the main speakers’ amplifier
  • Built-in, optimized equalizer curves for use with JL Audio subwoofers systems
  • Fixed or variable level control options
  • Selectable polarity control (0 or 180 degrees) to optimize subwoofer integration
  • Programmable time delay control added to the SA-600W’s subwoofer outputs and auxiliary outputs.
  • E.L.F. (Extreme Low Frequency) trim applies equalizer cut or boost at 25 hertz (-12 to + 3 dB) to tailor a subwoofer’s response for a particular room.
  • Innovative D.A.R.O. (Digital Automatic Room Optimization) technology designed to offset poor room acoustics (requires optional JL Audio calibration microphone – sold separately)
  • Three on-board equalizer bands with configurable frequency range, gain range and Q range to optimize in-room response
  • Grounded or Isolated input mode options for quiet, noise-free performance
  • Stereo, high-level inputs accept direct connection from receivers equipped with speaker level outputs only
  • Automatic turn-on options via signal sensing or 12V trigger
  • 12V input and output triggers to control additional SA-600Ws or peripheral equipment
  • Front-mounted USB port and DFU button provides easy access to update firmware
  • Versatile mounting options for table-top setups or rack-mount installations • Wireless input capability when used with a JLINKTM TRX System (sold separately)
