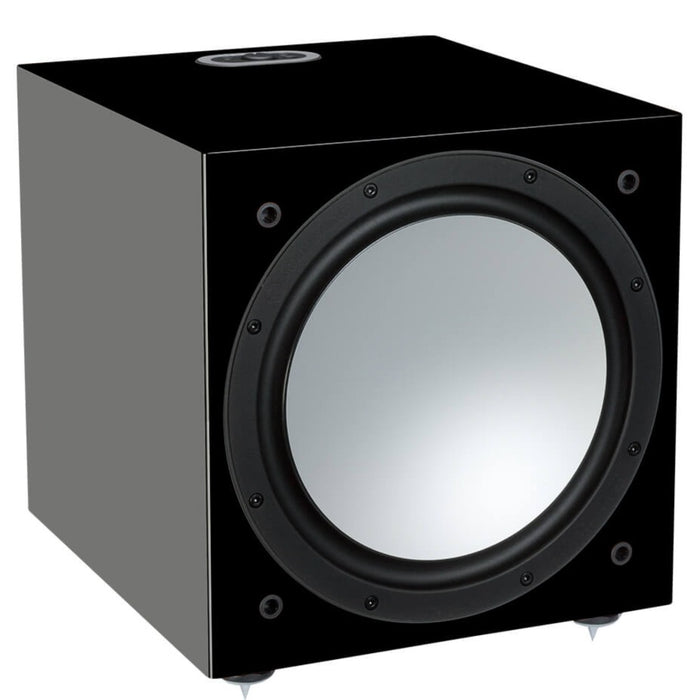

Monitor Audio Silver W-12 Subwoofer

Limited stock available.

The Monitor Audio Silver Series subwoofer delivers seismic bass right down to 22 Hz using a powerful, long throw 12-inch driver.

The Silver W-12’s over-specified driver assembly employs a hugely powerful magnet system and massive voice coil to deliver immense power from the compact sealed cabinet. A heavy-duty diecast basket not only holds the massive system rigidly together, but also assists thermal sinking to keep the driver cool.

For the Silver W-12 subwoofer Monitor Audio specified a 500-watt Class-D amplifier and power-supply module from highly-regarded amplifier specialist Hypex; this provides incredible headroom and utilises advanced switch-mode power conversion techniques. A powerful DSP has been employed to deliver the best performance and filter characteristics, while running the unique APC (Automatic Position Correction) system. The APC is a completely in-house development, designed to automatically correct for room modes. It uses a microphone and test tones to calculate detrimental room modes and correct frequency response, optimising it for the room and position. This is a simple and quick automated process that is a complete revelation to the installer and ensures the user can enjoy the subwoofer quality without positioning restrictions.

At the heart of the Silver W-12 lies a sophisticated 32-bit micro-controller, monitoring performance thousands of times per second, ensuring the system can deliver the best possible bass. It will never become over-driven or distorted, even at maximum power.

Features

  • Ultra long-throw 12-inch driver featuring ‘dished’ C-CAM cone
  • Triple suspension for ultimate linearity ensuring control at high power and excursions
  • Oversized black anodised 3-inch voice coil which provides high power-handling and low distortion
  • Powerful 500 W RMS Class-D amplifier with switching power supply provides instantaneous delivery of high current when required
  • DSP processing with all control features and crossover performed digitally
  • Automatic Position Correction plus automatic room setup feature using microphone for simple system optimisation
  • USB for firmware updates
  • Three preset EQ mode settings (Music, Movie, Impact)

Specification

Low Frequency Response

20 Hz (Typical IEC room)

Upper Frequency Limit

40 – 120 Hz variable

Low Pass Filter Alignment

Active 4th order 24 db/octave

Amplifier Power Output

500 W continuous

Amplifier Classification

Class-D amplifier with switched-mode power supply (SMPSU)

Bass EQ Profiles

1: Movie
2: Music
3: Impact

Phase Control

0 & 180 degrees

Auto Sensing

Line Level >2 mV

Input Level Requirements

Standby after 20 minutes if no signal sensed

Driver Complement

1 x 12” C-CAM subwoofer driver featuring triple suspension and 3” long throw voice coil

12 V Trigger Input

5 – 12 V via 3.5 mm mono mini-jack socket

Cabinet Dimensions (excluding grille and amp)

340 x 340 x 380 mm
(13 3/8" x 13 3/8" x 14 15/16”)

Dimensions (including grille, amp and feet)

370 x 340 x 410 mm
(14 9/16" x 13 3/8" x 16 1/8”)

Mains Input Voltage

110 – 120 Vac /
220 – 240 Vac 50/60 Hz (Electronically Auto selected)

Power Consumption

400 W / 0.5 W in Standby (ErP approved)

Weight (unpacked)

20.1 kg
