Vogel's THIN 515 ExtraThin Tilting TV Wall Mount

0 Reviews

Vogel's


Vogel's THIN 515 ExtraThin Tilting TV Wall Mount

A slim and elegant TV wall mount to mount your tv as flat as possible.

Thin TV bracket with tilting function

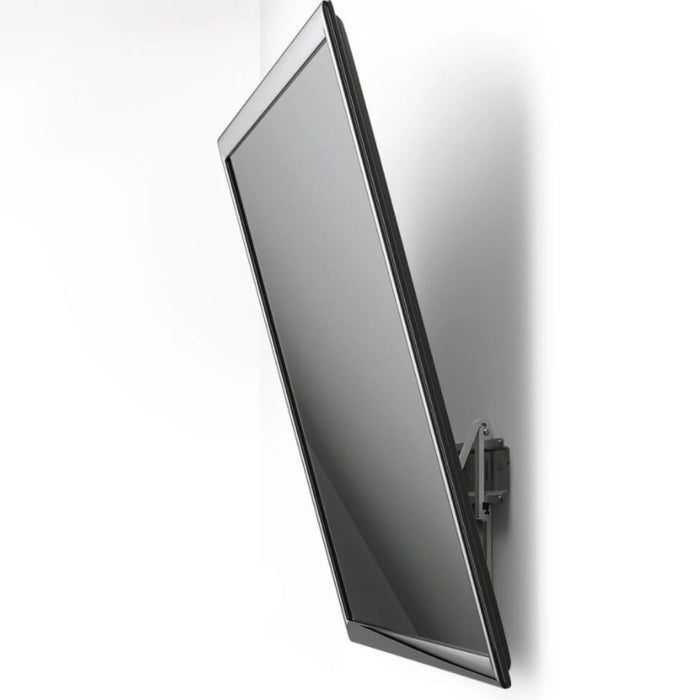

The THIN 515 tilting TV bracket has a maximum weight capacity of 25 kg. The THIN 515 is suitable for virtually any model of TV, from 40" to 65" (102-165 cm). The maximum tilt angle is 15°, the distance from the wall is 20 mm. After installation the wall mount is barely noticeable.

The ideal mounting solution if you have limited space
By mounting your TV a little higher on the wall and tilting it a few degrees, you maintain an optimal view. With no annoying reflections. A THIN wall bracket is the perfect solution for small rooms and bedrooms. With an extra-thin THIN fixed TV wall bracket you can mount your TV just 20 mm from the wall. Virtually invisible after installation.

vogels thin 515 extrathin tilting tv wall mount melbourne hi fi

Features

  • Mount your TV only 2 cm from the wall

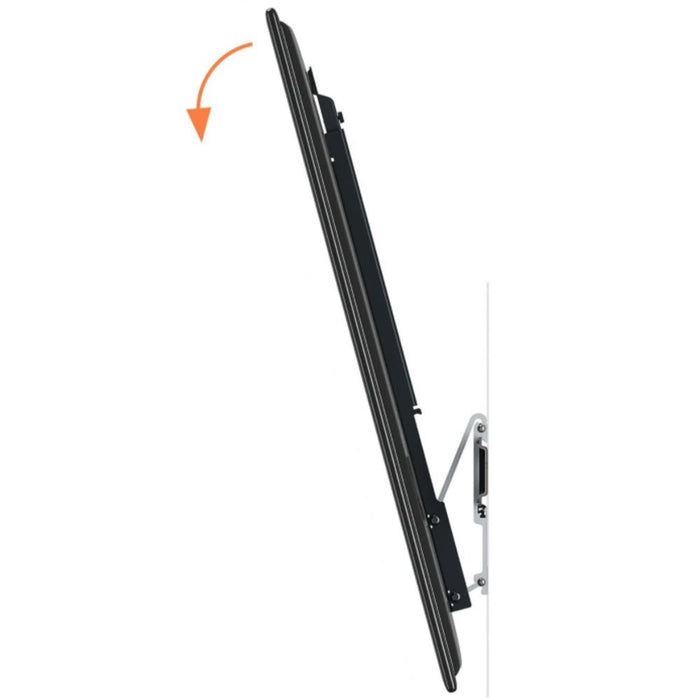

  • Tilt (up to 15°) to avoid reflections
  • Install your mount perfectly level: spirit level included!
Series
THIN
Guarantee
Lifetime
TÜV certified
Yes
Product size
L
Colour
Black
Min. screen size (inch)
40
Max. screen size (inch)
65
Hole pattern (VESA)
  • 100 mm x 100 mm
  • 100 mm x 200 mm
  • 200 mm x 100 mm
  • 200 mm x 200 mm
  • 200 mm x 300 mm
  • 300 mm x 200 mm
  • 300 mm x 300 mm
  • 400 mm x 200 mm
  • 400 mm x 300 mm
  • 400 mm x 400 mm
  • 500 mm x 200 mm
  • 500 mm x 300 mm
  • 500 mm x 400 mm
  • 600 mm x 200 mm
  • 600 mm x 300 mm
  • 600 mm x 400 mm
Min. distance to the wall (mm)
20
Max. weight load (kg)
25
Tilt
Tilt up to 15°
What's in the box

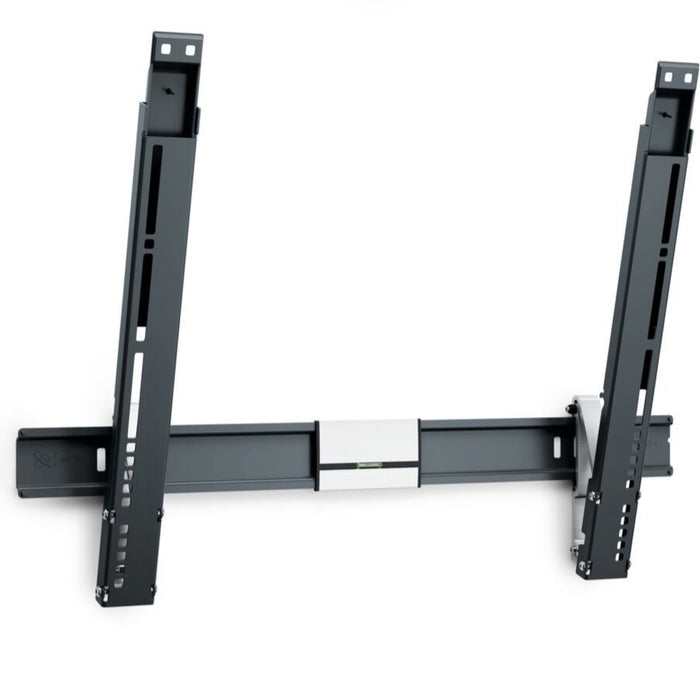

  • Wall mount
  • TV fasteners kit
  • Spirit level
  • Mounting instructions
  • TV Mount Guide app
  • Wall mounting kit
