Yamaha YHT3A 5.1 Channel Home Theatre Package

0 Reviews

Yamaha


Yamaha YHT3A 5.1 Channel Home Theatre Package

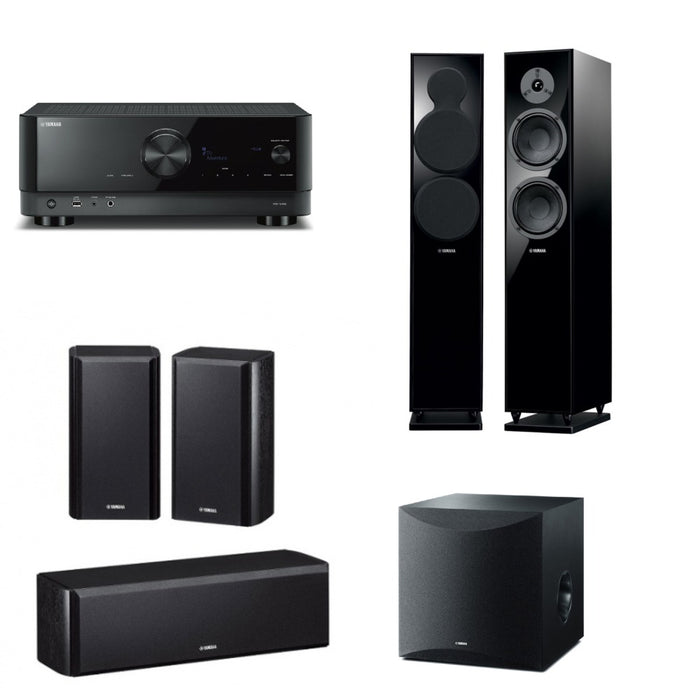

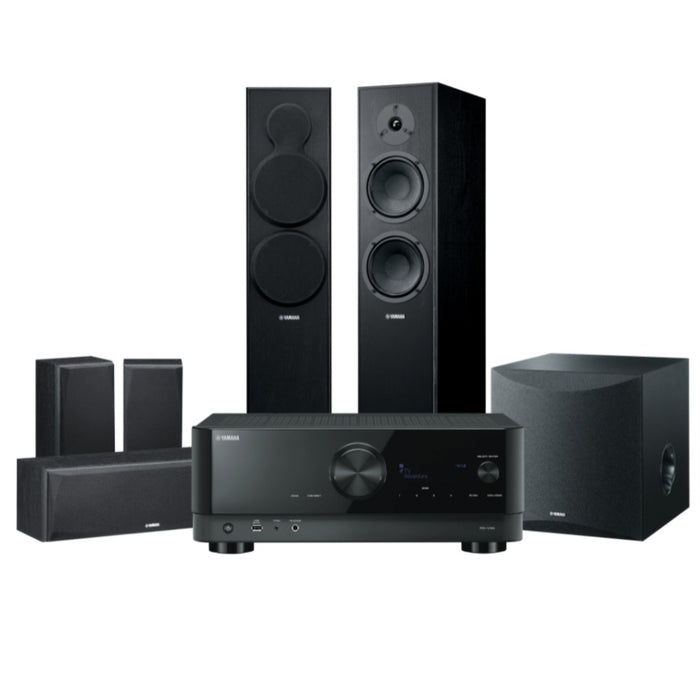

This pack includes:

  • Yamaha RX-V4A 5.2 Channel Music Cast AV Receiver
  • Yamaha NS-F150B Floorstanding Speakers (pair)
  • Yamaha NS-P160B 1 x Centre and 2 x Surround Speaker Pack
  • Yamaha NS-SW100B Subwoofer

Yamaha RX-V4A AV Receiver

Enter the world of home theatre with the V4A. This AV receiver will completely transform how you listen and watch at home. Plus, plenty of features means plenty of choices on how to enjoy your entertainment.

Yamaha NS-F150B Floorstanding Speakers

This elegant, high performance speaker is ideal for HD movies and music. The impressive cabinet houses a 2-way, 3-speaker configuration and delivers natural sound with powerful bass output.

Features

  • Two 16cm (6-1/2”) cone woofers and 3cm (1”) soft dome tweeter for powerful bass and smooth full-range sound
  • Dynamic reproduction of HD sources
  • Large-size, gold-plated screw terminals
  • High-class design with elegant speaker grilles inspired by Yamaha top-line models
  • Support spikes and stand add to the impressive appearance

Yamaha NS-P160 Speaker Pack

Two surround speakers and one centre speaker deliver the high sound quality you expect from Yamaha speakers. All have 2-way acoustic suspension designs with one (surround) or two (centre) 8cm cones and a 1.4cm balanced dome.

Features

  • Side panels with elegant rounded edges
  • Perfectly matched home theatre speaker system
  • Centre speaker has two 8cm cone woofers and a 1.4cm balanced dome tweeter for clear and natural movie dialogue and music vocals
  • Surround speakers have an 8cm cone woofer and a 1.4cm balanced dome tweeter for cleanly reproduced full-range sound
  • Large-size, gold-plated screw terminals

Yamaha NS-SW100 Subwoofer

This subwoofer incorporates a number of Yamaha’s advanced and a high performance bass technologies such as Twisted Flare Port and Advanced YST II (Yamaha Active Servo Technology II) with discrete amp circuitry and high quality 25 cm (10”) woofer unit. This results in sensational bass response that adds significantly to overall listening enjoyment of music and movies.

  • New Twisted Flare Port contributes to clear and tight bass
  • Advanced YST II (Yamaha Active Servo Technology II)
  • 25 cm (10”) cone woofer
  • Stylish addition to any room



RX-V4A

Channels 5.2
Power Output per Channel 2-Channel Driven:
80 W at 6 Ohms / 20 Hz to 20 kHz / 0.06% THD

AUDIO PROCESSING

DTS Compatibility DTS-HD Master Audio
Dolby Compatibility Dolby Digital Plus, Dolby TrueHD
Auro 3D Support No
Supported File Formats 11.2 MHz DSD, AAC, AIFF, ALAC, FLAC, MP3, WMA
DAC 384 kHz / 32-Bit (BB PCM5101A)

VIDEO

HDR Compatibility HDR10
Pass-Through Support 4K60p
Upscaling 4K UHD
GUI Yes

CONNECTIVITY

Rear A/V Inputs 4 x HDMI
1 x Optical TOSLINK
1 x Digital Coaxial
3 x Stereo RCA
Rear A/V Outputs 1 x HDMI
2 x RCA Subwoofer Pre-Out
Front I/O 1 x 1/4" / 6.35 mm Headphone Output
1 x USB Type-A
1 x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O 1 x RJ45 (Ethernet)
2 x Bluetooth/Wi-Fi Antenna Terminal Input
1 x FM Antenna Terminal Input
Speaker Connectors 5 x Binding Post Pairs
HDCP Support Version 2.3
Audio Return Channel (ARC) Yes, eARC
HDMI CEC Yes
Media Card Slot None
A/B Speaker Selection None
Bi-Amp Capability Yes


WIRELESS CONNECTIVITY

Supported Audio Codecs AAC, SBC
Wireless Audio Protocols AirPlay 2, MusicCast


CONTROL

Virtual Assistant Support Amazon Alexa, Google Assistant
Tuner Section
Tuner Type AM, FM


POWER

Power Consumption Standby: 0.1 W





NS-F150
Type 2-way bass-reflex floorstanding speaker
Woofers Dual 16cm (6-1/2”) cone
Tweeter 3cm (1”) soft dome
Frequency Response 37 Hz–30 kHz
Nominal Input Power 50 W
Maximum Input Power 180 W
Sensitivity 88 dB/2.83 V/1 m
Impedance 6 ohms
Dimensions (W x H x D) 200 x 1,030 x 362 mm; 7-7/8” x 40-1/2” x 14-1/4”
Weight 11.2 kg; 24.7 lbs./unit


NS-P160
Type 2-way acoustic suspension
Center Speaker Woofers Dual 8cm (3-1/4”) cone
Tweeter 1.4cm (1/2”) balanced dome
Frequency Response 60 Hz–38 kHz
Nominal Input Power 30 W
Maximum Input Power 80 W
Sensitivity 86 dB/2.83 V/1 m
Impedance 6 ohms
Dimensions (W x H x D) 465 x 135 x 172 mm; 18-1/4” x 5-3/8” x 6-3/4”
Weight 2.9 kg; 6.4 lbs./unit
Surround Speaker Woofers 8cm (3-1/4”) cone
Tweeter 1.4cm (1/2”) balanced dome
Frequency Response 60 Hz–38 kHz
Nominal Input Power 20 W
Maximum Input Power 60 W
Sensitivity 82 dB/2.83 V/1 m
Impedance 6 ohms
Dimensions (W x H x D) 150 x 265 x 152 mm; 5-7/8” x 10-3/8” x 6”
Weight 1.8 kg; 4 lbs./unit
NS-SW100
Driver 25 cm (10”) cone
Dynamic Power 100 W (5 ohms)
Output Power 50 W (100 Hz, 5 ohms, 10% THD)
Frequency Response 25–180 Hz
Advanced YST Yes
Twisted Flare Port Yes
Dimensions (W x H x D) 351 x 352 x 408 mm; 13-7/8” x 13-7/8” x 16-1/8”
Weight 12 kg; 26.5 lbs.
