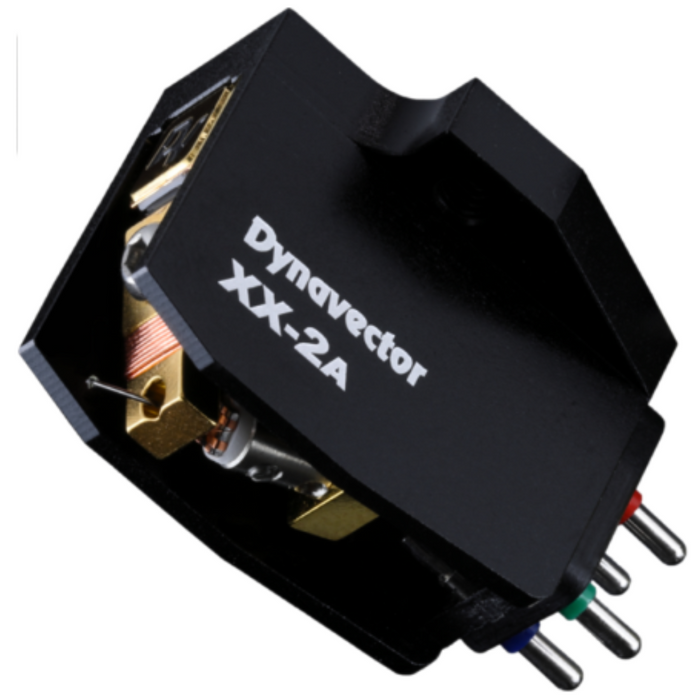

Dynavector DV XX-2A Turntable Cartridge

Write a review
Original price $2,999.00 - Original price $2,999.00
Original price
$2,999.00 - $2,999.00
Current price $2,999.00

Dynavector DV XX-2A Turntable Cartridge

Introducing the Special Annealing Magnetic Circuit

While an exceptional vibration system is essential for a high-performance MC cartridge, we emphasise the critical role of the magnetic circuit. The cartridge’s output signal is intricately tied to the movement of the vibration system within the magnetic circuit, where electricity is generated as the coil vibrates amidst the magnetic flux.

To ensure optimal output, it is imperative that the magnetic flux maintains high density and stability. We employ pure iron for our magnetic circuit due to its high magnetic permeability and exceptional stability, resulting in a distortion-free output. However, the processing of metal parts often distorts the crystal structure at the atomic level, leading to a loss of magnetic permeability.

Magnetic annealing, a process of heating and cooling processed parts, is crucial for restoring the distorted metal crystal structure and regenerating magnetic permeability. However, a generic magnetic annealing cannot fully restore distortions in the crystal structure. The magnetic annealing conditions vary depending on the parts material, size, shape, etc. Our recent development focused on finding the best magnetic annealing process, including temperature, environment, duration, and heating and cooling rates. This meticulous approach has enabled us to unleash the full potential of pure iron’s unique magnetic performance.

The new magnetic circuit has significantly enhanced sound quality, delivering unrivalled resolution, smooth wide-range expression, and expansive sound field. Experience the natural and dynamic sound of the Dynavector XX-2A cartridge, where an exceptional vibration system harmonises seamlessly with an optimised magnetic circuit.

Benefits of Magnetic Annealing

Magnetic annealing rejuvenates the distorted crystal structure, restoring magnetic permeability to its original state.


Alnico magnet and flux damping

Incorporating Alnico magnets with low magnetic resistance into the magnetic circuit, the XX-2A ensures minimal fluctuation in magnetic force during record playback.  Compared to mainstream high-energy rare-earth magnets, such as samarium cobalt and neodymium boron, Alnico magnets contribute to a high signal-to-noise ratio (S/N) and excellent transient response.  Additionally, Dynavector’s patented Flux Damping technology stabilises magnetic flux within the air gap, ensuring linear output regardless of the cantilever movement level.

High rigidity magnetic circuit

Crafted with stainless bolts securing the front and rear yokes along with the magnets, the XX-2A boasts a high-rigidity magnetic circuit. Skilled artisans meticulously adjust tightening torque during assembly, a process crucial for maintaining sound quality and ensuring optimal performance for each unit.


Featuring a compliance of 10mm/N and weighing 8.9g, the XX-2A cartridge is compatible with a wide range of tonearms, from light to medium mass. We recommend the use of a light weight headshell to optimise performance.

Solid boron cantilever

The XX-2A is equipped with a 6mm length solid boron cantilever, coupled with a Path Finder (PF) line contact stylus, creating a lightweight and rigid vibration system for enhanced playback accuracy.

low output moving coil cartridge
with flux damper and alnico magnet
Output Voltage
0.28 mV (at 1KHz, 5cm/sec.)
Channel Separation
30 dB (at 1KHz)
Channel balance
1.0 dB (at 1KHz)
Frequency response
20 - 20,000 Hz(±1dB)
10 mm/N
Tracking force
1.8 - 2.2 g
6 ohms
Recommended load impedance
> 30 ohms
6mm length solid boron
Stylus tip
PF Line contact shape,
stylus radius: 7 x 30 micron
8.9 g
