JBL Conceal C62 Invisible Speaker

by JBL
Write a review
Original price $1,099.00 - Original price $1,099.00
Original price
$1,099.00 - $1,099.00
Current price $1,099.00

JBL Conceal C62 Speaker

6.5-inch (165mm) 2-element Invisible Loudspeaker

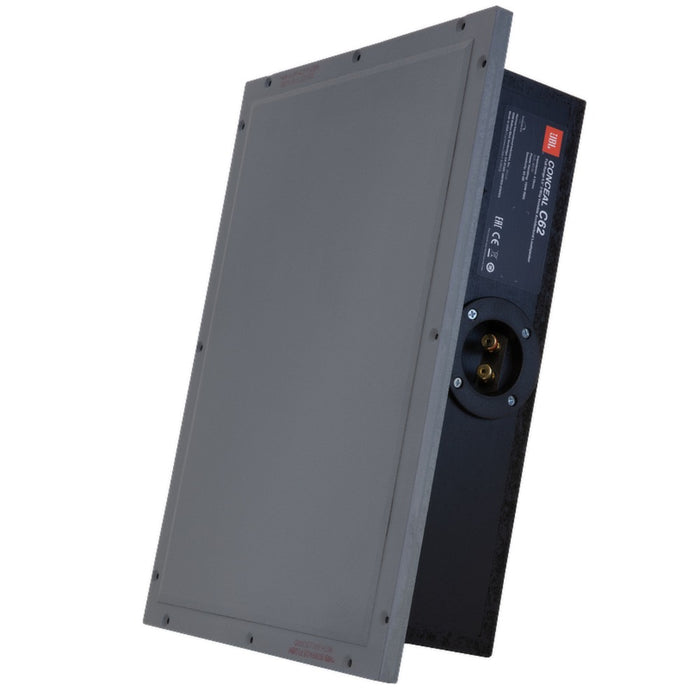

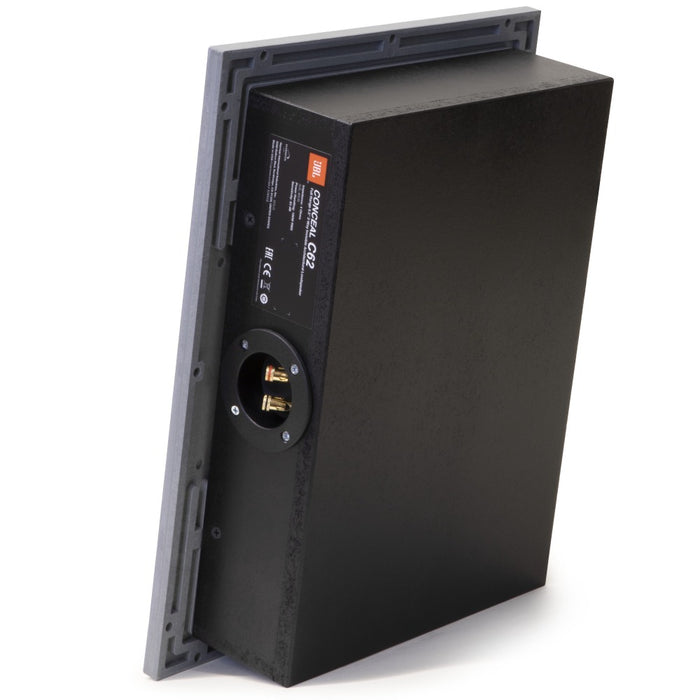

The JBL Conceal C62 Invisible Loudspeaker is a compact 2-way design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. The finished loudspeaker panel installs easily and disappears completely into the surrounding walls and ceiling, allowing optimal placement virtually anywhere in a home. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.

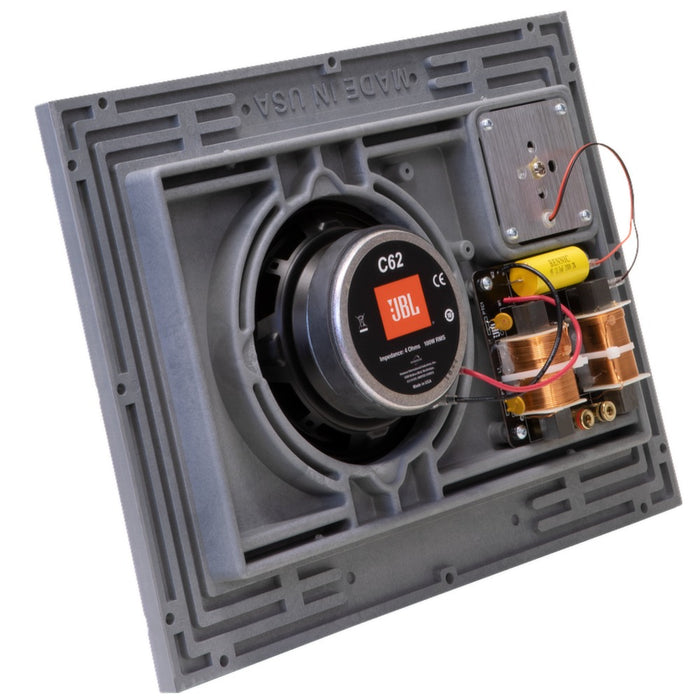

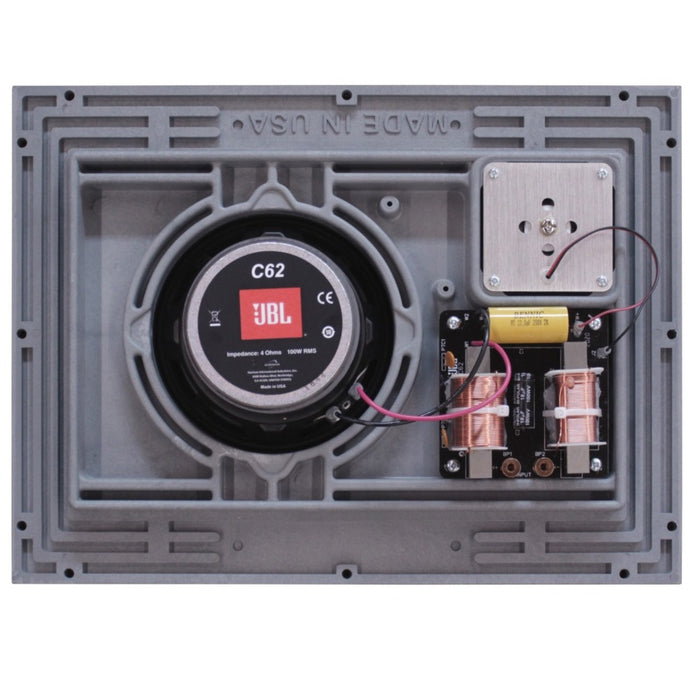

  • One-piece design with 6.5-inch (165mm) woofer and single-element MF/HF transducer
  • Proprietary Fidelity Glass acoustic panel and compression molded baffle
  • Custom designed transducers with JBL premium acoustic crossover network
  • Installs like a standard drywall patch
  • Paintable surface can also be custom finished


  • Drivers - HF Driver: 1.18” (30mm) voice coil transducer with neodymium magnet
  • LF Driver: 6.5” (165mm) woofer with 1-inch (25mm) voice coil
  • Frequency Response: 45 Hz – 20 kHz (-6dB) measured in-room § Sensitivity: 83 dB/1W/1m measured in-room
  • Nominal Impedance: 4 Ohms
  • Recommended Amplifier Power: 50 – 100 Watts RMS
  • Driver Technology: Direct-coupled Transducers (HF/MF) and Acoustic Levered Cone Woofer (LF)
  • Panel Dimensions: 302mm H x 403mm W x 98mm D

Optional Add On:

JBL Conceal C12PCB Pre-Construction Bracket


  • For temporary use as part of the installation process for the JBL Conceal Series of invisible speakers into new construction
  • Designed to be installed during pre-wire and reserve the proper speaker openings as the wallboard is installed around them
  • Specifically sized for JBL Conceal C62 and C86 (MF/HF panel)
  • Prevents speakers from being exposed to the harsh construction environment
  • Replaced with a speaker just before drywall seam finishing begins
  • Reusable and should be saved after each project
  • Priced as per piece
