JBL Conceal C86 Invisible Speaker

by JBL
Write a review
Original price $3,599.00 - Original price $3,599.00
Original price
$3,599.00 - $3,599.00
Current price $3,599.00

JBL Conceal C86 Invisible Speaker

8-inch (200mm) 6-element, Dual Panel Invisible Loudspeaker

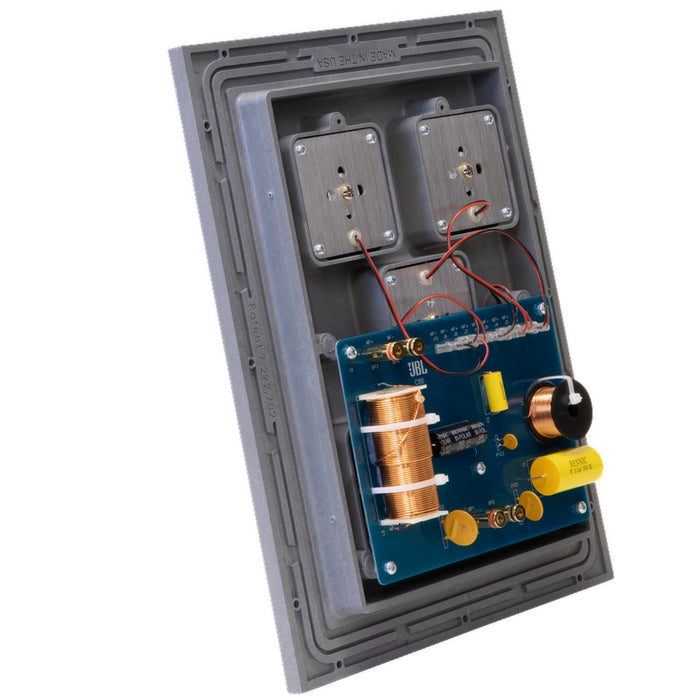

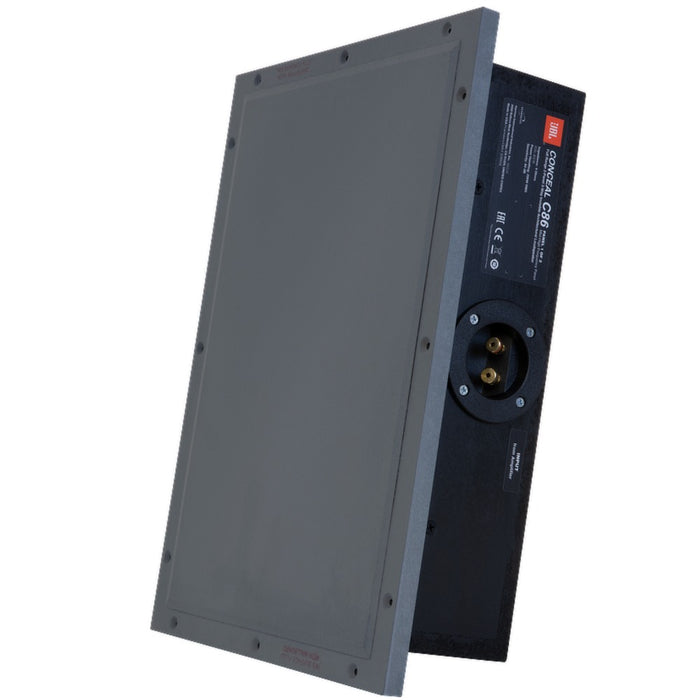

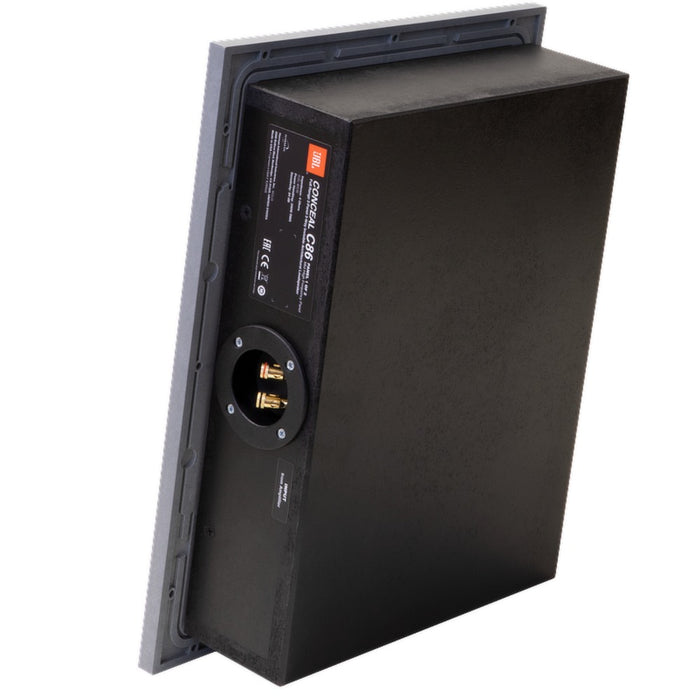

The flagship of the Series, the JBL Conceal C86 Invisible Loudspeaker is a 3-way, dual panel design, with a separate LF panel and a 5-driver 2-way MF/HF panel. Built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin, the finished loudspeaker panels install easily and disappear completely into the surrounding walls, allowing optimal placement virtually anywhere in a room. The JBL C86 is the ultimate solution for high-performance architectural audio.


  • Two-piece design with 8-inch (200mm) LF panel and separate five-element HF panel
  • Proprietary Fidelity Glass acoustic panel and compression molded baffle
  • Custom designed transducers with JBL premium acoustic crossover network
  • Installs like a standard drywall patch
  • Paintable surface can also be custom finished


  •  Drivers -
  • LF Driver: 8” (203mm) woofer with 1.5-inch (38mm) voice coil
  • MF Driver: Four 1.18” (30mm) voice coil transducers with neodymium magnets
  • HF Driver: 1” (25mm) voice coil transducer with neodymium magnet
  • Frequency Response: 45 Hz – 20 kHz (-6dB) measured in-room

  • Sensitivity: 84 dB/1W/1m measured in-room
    Nominal Impedance: 4 Ohms
    Recommended Amplifier Power: 50 – 200 Watts RMS

    Driver Technology: Direct-coupled Transducers (HF/MF) and Acoustic Levered Cone Woofer (LF)

    Panel Dimensions:
    MF/HF Panel: 302mm H x 403mm W x 98mm D

  • LF Panel: 559mm H x 403mm W x 98mmD

Optional Add On:

JBL Conceal C22PCB Pre-Construction Bracket


  • For temporary use as part of the installation process for the JBL Conceal Series of invisible speakers into new construction
  • Designed to be installed during pre-wire and reserve the proper speaker openings as the wallboard is installed around them
  • Specifically sized for JBL Conceal C83 and C86 (LF panel)
  • Prevents speakers from being exposed to the harsh construction environment
  • Replaced with a speaker just before drywall seam finishing begins
  • Reusable and should be saved after each project
  • Priced as per piece
