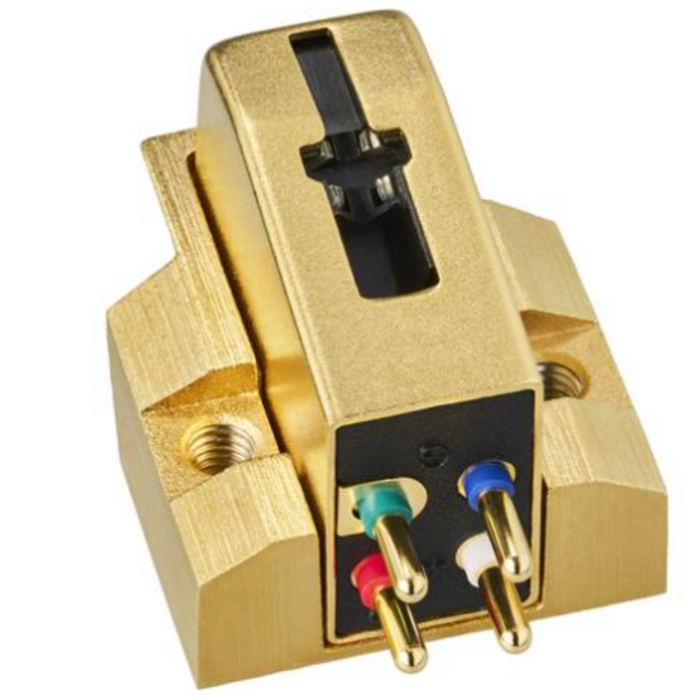

Audio-Technica AT-VM760xSL Dual Moving Magnet Cartridge
CALL FOR AVAILABILITIES
Experience superior sound quality with the Audio-Technica AT-VM760xSL Dual Moving Magnet Cartridge.
The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail.
Like all our MM cartridges, this updated design closely mirrors the cutter head used to make the vinyl master. It utilizes two magnets, positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. But the new VMx series also introduces material and design changes to further refine the sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.
Features
Easy to Install and Use
Each AT-VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.
Highly Efficient Generator
The paratoroidal coil construction of the cartridge’s generator – two PCUHD coils per channel, one stacked behind the other – greatly improves electromagnetic performance, while a slight reduction in coil turns* enhances transient response for clean, lifelike sound.
*Compared to VM series cartridges
Solid Boron Cantilever and Metal Body
The three premium VMx models (AT-VM760x, AT-VM750x, AT-VM745x) feature a solid boron cantilever. Naturally lightweight and rigid, boron transmits signals from the record groove faster than an aluminum cantilever. The result is more accurate sound reproduction that’s particularly noticeable on dynamic musical passages. The die-cast aluminum body reduces vibrations and resonance.
Features
- AT-VMx dual moving magnet cartridge with special line contact stylus
- Special line contact stylus traces the record groove with extreme accuracy, delivering premium high-frequency response and detailed spatial expression
- Solid boron cantilever quickly transmits vibrations from the record groove, ensuring accurate reproduction of dynamic musical passages
- Die-cast aluminum body reduces vibrations and resonance
- Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response
- PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response
- Center shield plate between the left and right channels reduces crosstalk for clear stereo sound
- Threaded inserts make cartridge easier to mount, especially to integrated tonearms
- V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
- Compatible with any turntable headshell that accepts 1/2" cartridges
- Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application
*Excludes mono models
Interchangeable Styli
Since all AT-VMx series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx replacement stylus* with any VMx cartridge for easy experimentatuioin with sound characteristics.
AT-VMN10xCB (conical/bonded/aluminum cantilever)
AT-VMN20xEB (elliptical/bonded/aluminum cantilever)
AT-VMN30xEN (elliptical/nude/aluminum cantilever)
AT-VMN40xML (microlinear/nude/aluminum cantilever)
AT-VMN45xML (microlinear/nude/boron cantilever)
AT-VMN50xSH (shibata/nude/boron cantilever)
AT-VMN60xSL (specil line contact/nude/boron cantilever)
Specifications
| Cartridge & Stylus |
| Frequency Response |
20 to 30,000 Hz |
| Channel Separation |
26 dB (1 kHz) |
| Vertical Tracking Angle |
20° |
| Tracking Force |
1.8 to 2.2 g (2.0 g standard) |
| Stylus Construction |
Special line contact |
| Recommended Load Impedance |
47 k ohms |
| Coil Impedance |
3.2 k ohms (1 kHz) |
| DC Resistance |
750 ohms |
| Coil Inductance |
480 mH (1 kHz) |
| Output Voltage |
3.7 mV (1 kHz, 5 cm/sec.) |
| Output Balance |
1.0 dB (1 kHz) |
| Cantilever |
0.28 mm (0.011”) diameter solid boron |
| Static Compliance |
17.5 × 10-6 cm/dyne |
| Dynamic Compliance |
7 × 10-6 cm/dyne (100 Hz) |
| Dimensions |
29.0 mm (1.1”) × 18.3 mm (0.72”) × 17.5 mm (0.69”) (H × W × D) |
| Accessories Included |
・Cartridge installation screw** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), Washer × 2, Non-magnetic screwdriver, Brush |
| Threaded Hole |
M2.6 × 2 |
| Recommended Load Capacitance |
150 to 250 pF |
| Replacement Stylus |
AT-VMN60xSL* (sold separately) |
| Stylus Curvature Radius |
1.5 × 0.28 mil |
| Type |
VM |
| Weight |
8.8 g (0.31 oz) |
| Notes |
*The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes.
**Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box.
For product improvement, the product is subject to modification without notice. |
