Bluesound Professional BSP500 POE Network Streaming In-Ceiling Speaker

Transform any space with the Bluesound Professional BSP500 POE Network Streaming In-Ceiling Speaker. This powerful speaker offers high-quality audio streaming with easy installation through Power over Ethernet. Enjoy clear sound and seamless streaming in any room.

The Bluesound Professional BSP500 is a network active loudspeaker with integrated streaming capability designed specifically for use in either indoor or outdoor commercial installations.

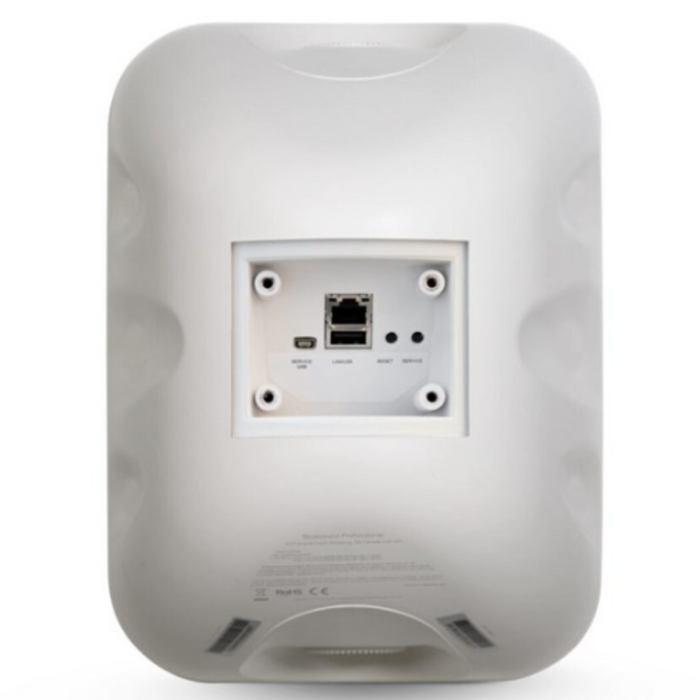

This unit is powered by Power over Ethernet(PoE) allowing a one-wire connection to the speaker for both power and audio. The player in the BSP500 is based on the established BluOS platform and is capable of playing and distributing content from local network storage as well as from a large number of streaming services, including some specifically designed for commercial use, such as SoundMachine, Custom Channels, QSIC, SiriusXM Music for Business, Tunify and radio stations. As well as stand-alone use, it is possible to use a pair of BSP500 speakers in stereo configuration and multiple BSP500’s in a room in either mono or stereo configurations. Use of the BSP500 in a larger BluOS system is also possible, allowing for grouping into user-definable groups of whatever size is required with other BSP500 units and/or any other connected Bluesound Professional players, amplified players or network speakers on the network in an installation.

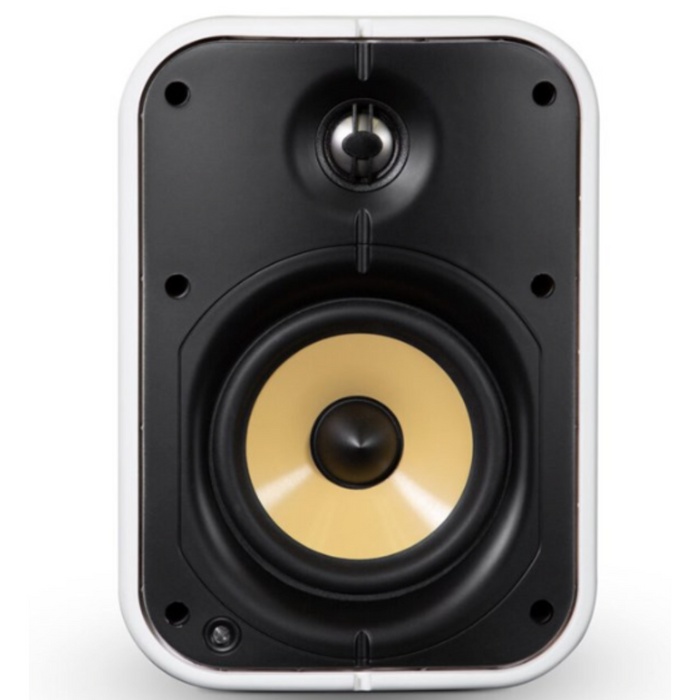

The loudspeaker features a 5.25” LF driver and a 1” HF driver powered by a high efficiency amplifier including a low power standby mode. The frequency response of the speaker is 63Hz-23kHz and the THD+N of the system is 0.095% at full rated power. Access to content and power is via wired ethernet for glitch-free streaming. High efficiency electronics and drive units provide a maximum SPL of 100dB (using PoE++).

Control of the speaker can be accomplished by any Windows/Mac computer as well as any iOS/Android phone or tablets and the Bluesound Professional CP100 wall mount controller. Third party control is also possible with any of the leading systems. Security provisions prevent any un-authorized control of the system.

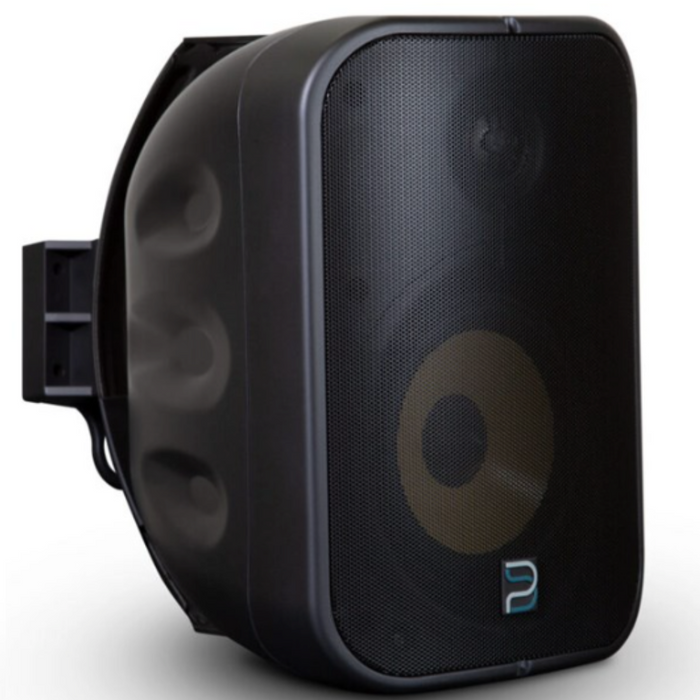

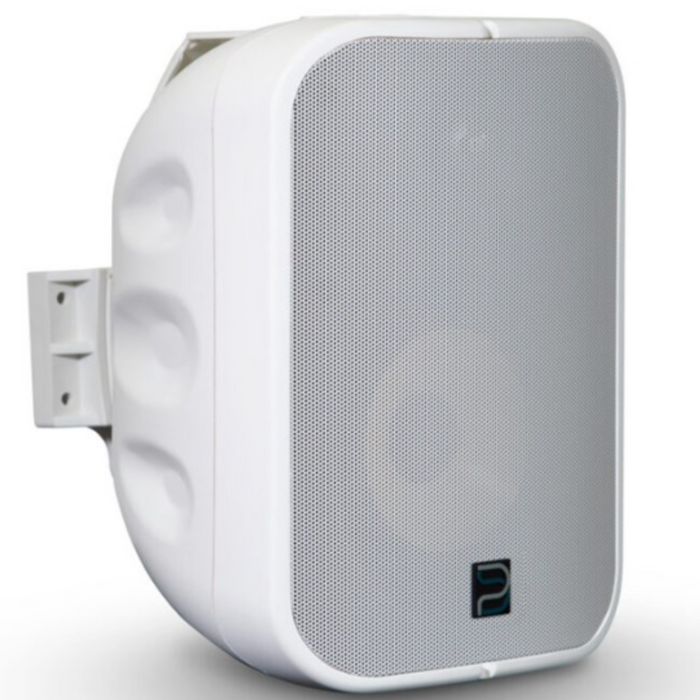

An integral bracket allows for wall mounting with 90 degrees of swivel and 170 degrees of rotation possible. IP65 rating allows for either indoor or outdoor use.

Easily Create Branded Environments

With hardware that supports nearly unlimited zones of audio and a natively-integrated commercially-licensed music streaming service in SoundMachine, Custom Channels, SiriusXM for Business, Qsic and Tunify, Bluesound Professional makes easy work of creating branded environments for your clients.

Seamless Integration with Control Systems

Bluesound Professional’s line of commercial streaming hardware allows flexible control by third-party control systems, and interfaces exist for all of today’s market-leading automation platforms. BluOS®, the multi-zone, music sharing software that underpins all Bluesound Professional players and active speakers, communicates with third-party control systems and platforms so that A/V system integrators, business owners, consultants and system designers can design seamless audio ecosystems to meet the needs of any commercial installation. Integration partners

Add Audio Streaming to Existing or New Installations

Bluesound Professional’s decentralized processing capabilities gives designers and installers maximum flexibility to add audio streaming to installations, whether existing or new.

Easy to Configure

Self-discovery makes set-up and configuration painless, as Bluesound Professional players placed onto the same network will find each other automatically. A few taps on the intuitive icons in the BluOS Controller app will group players to create zoned audio content and lock-out unauthorized users.

 Key Features

• Full-range network streaming speaker system
• 5.25” LF driver and 1” HF driver
• Power over Ethernet (PoE+, PoE++) powering to allow single wired connection for both power and signal
• Indoor or outdoor use (IP65 rating)
• 63Hz-23kHz frequency range
• 0.095% THD+N at full rated power
• Maximum SPL of 100dB (PoE++)
• 2 or more BSP500’s can pair in stereo or multiple mono configuration
• Flexible and unlimited grouping of zones within a BluOS system
• Integration with local network content storage
• Integration with many streaming services including Spotify, Tidal, Qobuz, Soundmachine, QSIC, Custom Channels, etc.
• Integration with a wide variety of internet radio platforms
• PC/Mac, iOS/Android and third-party control
• Security preventing unauthorized control
• Specialist Bluesound Professional control panels
• Support of Hi-Res audio up to 192kHz/24 bit
• Support of MQA content
• Streaming via ethernet for increased reliability
• Wall mounting with integral bracket

Specifications

AUDIO

• Supported File Formats: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
• Hi-Res formats: FLAC, MQA, WAV, AIFF
• Native Sampling Rates: 32 - 192kHz
• Bit Depths: 16 - 24

PERFORMANCE

• Frequency Response: 63Hz-23kHz
• Distortion: THD+N - 0.095% (20hz-20khz at Rated Power)
• Power Output:
  • 20 Watts @ 30 Watts PoE
  • 40 Watts @ 60 Watts PoE
• Speakers:
  • 1 x 133mm (5.25”), Woofer
  • 1 x 25mm (1”), Tweeter
• Supported Operating Systems: Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista 7-10, Apple Macintosh 7-10
• Free Internet Radio: TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise, LiveXLive
• Supported Cloud Services: Spotify, Amazon Music, TIDAL, Deezer , Qobuz, HighResAudio, Napster, KKBox, Bugs, Custom Channels, SoundMachine, QSIC
• Integration Partners: Control4, RTI, Crestron, URC, push, iPort, ELAN, Lutron
• Album Art: JPG
• Network: Gigabit Ethernet RJ45
• USB:
  • 1 x Type-A port for connection to USB memory sticks (Fat32
  • or NTFS formatted) and supported peripherals
  • 1 x Type-B (mini) for product servicing
• Power:
  • PoE+ IEEE 802.3at Type 2 (30W)
  • PoE++ IEEE 802.3bt Type 3 (60W)

USER INTERFACE

• Mobile Operating System: BluOS - Free Android and iOS App Available Online at Google Play and Apple App Store

GENERAL

• Processor: ARM® CORTEXTM A9, 1 GHz
• Unit Weight: 3.2kg / 7.06 lbs
• Gross Dimensions: 196 x 268 x 251mm / 7 7/8” x 10 5/8 x 9 7/8 inches
• Power Consumption (Idle): 3.3 Watts
• Storage Environment: -10° C to 50° C, 20% to 80% relative humidity
• Operating Environment - Indoor/Outdoor:
  • 0° to 40° C
  • IP65 rating
• Finish: Available in White or Black Matte
