Our CAT100AU Audio over CAT5e/6 extender kit transmits audio signals up to a distance of 300m (192kHz signals up to 100m).
This plug-and-play device accepts both optical and coaxial digital inputs and includes a built in DAC to enable use of the stereo left / right audio output from either input.
Key Features
Extend optical and coaxial digital audio signals up to distances of 300m* over a single CAT cable
Both optical and coaxial digital can be distributed at the same time
Built in DAC (Digital to Analogue Audio Converter) converts either optical or coaxial digital (selectable) to analogue stereo left / right audio output (source selected on receiver unit)
Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution
Ultra low jitter and high fidelity design
*CAT100AU supports distances of up to: 192kHz - 100m, 96kHz - 150m, < 48kHz - 300m
Specifications

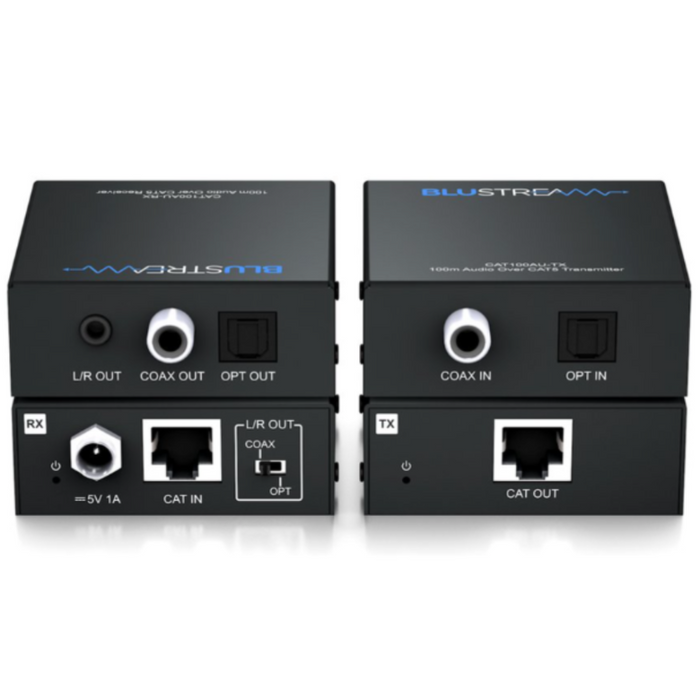

CAT100AU-TX:

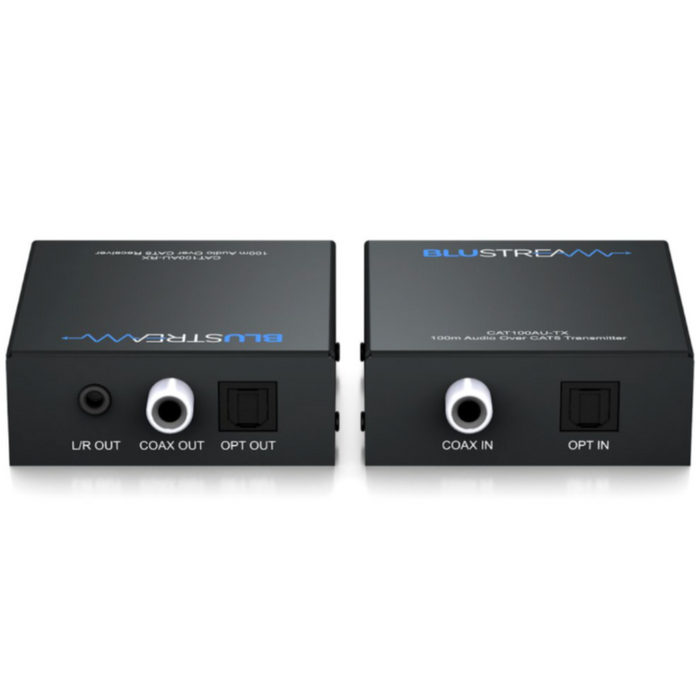

Audio Input Connectors: 1 x Optical (S/PDIF) & 1 x RCA (S/PDIF)
Connectors: 1 x RJ45
CAT100AU-RX:
Input Connectors: 1 x RJ45 & 5V/1A DC
Output Connectors: 1 x Optical (S/PDIF), 1 x RCA (S/PDIF) & 1 x Analogue Left / Right - 3.5mm stereo audio jack
Balun Dimensions (W x D x H): 65 x 80 x 25mm (with connections)
Balun Dimensions (W x D x H): 65 x 70 x 25mm (without connections)
Ind. Balun Weight: 0.13kg (excluding accessories)
Carton / Box Dimensions (W x D x H): 210 x 125 x 95mm
Shipping Weight: 0.6kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/1A DC, barrel type connector
Power supplied to the Transmitter unit from the Receiver
