Blustream EX40B-KIT Slimline HDMI Extender Set

Slimline HDMI Extender Set - 40m @ 1080p (1080i up to 50m) & Bi-directional IR

Our Slimline EX40B-KIT HDMI™ extender set offers HDMI distribution over a single CAT cable at outstanding value. The product delivers HDMI & Bi-directional IR up to lengths of 40m @ 1080p and 50m @ 1080i.

Key Features

  • Extends HDMI up to distances of 40m over a single CAT cable (1080i up to 50m)

  • Supports video resolutions 480i-1080p*

  • Supports bi-directional IR from input and output locations

  • Supports LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Supports full 3D signal display

  • Supplied with Blustream IR receiver and emitter

  • Requires local power at both transmitter and receiver

  • EDID management

  • HDCP 1.4 compliant

    * 8-bit colour support only

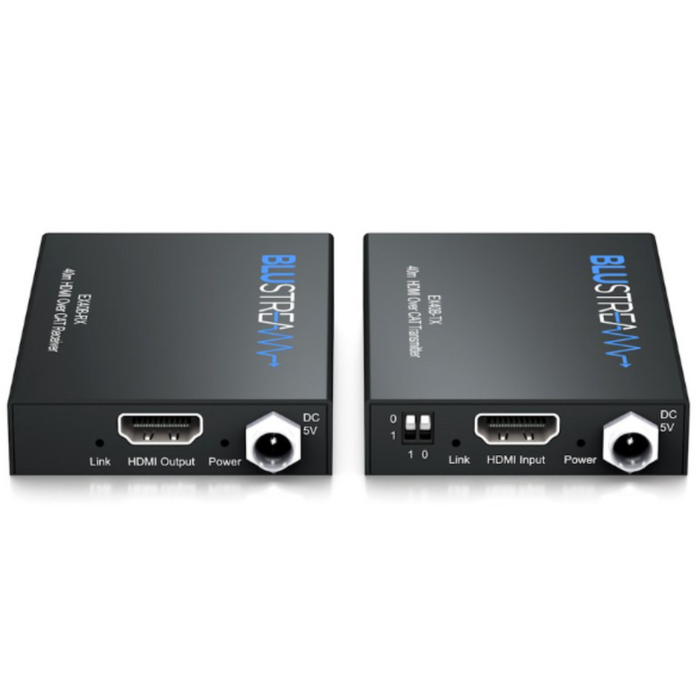

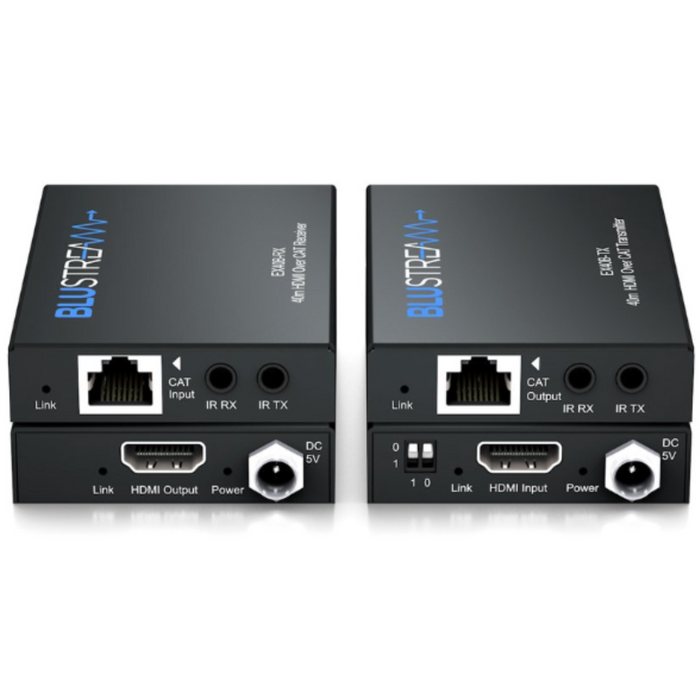

  • Video Input:

    - EX40B-TX: 1 x HDMI Type A, 19-pin, female

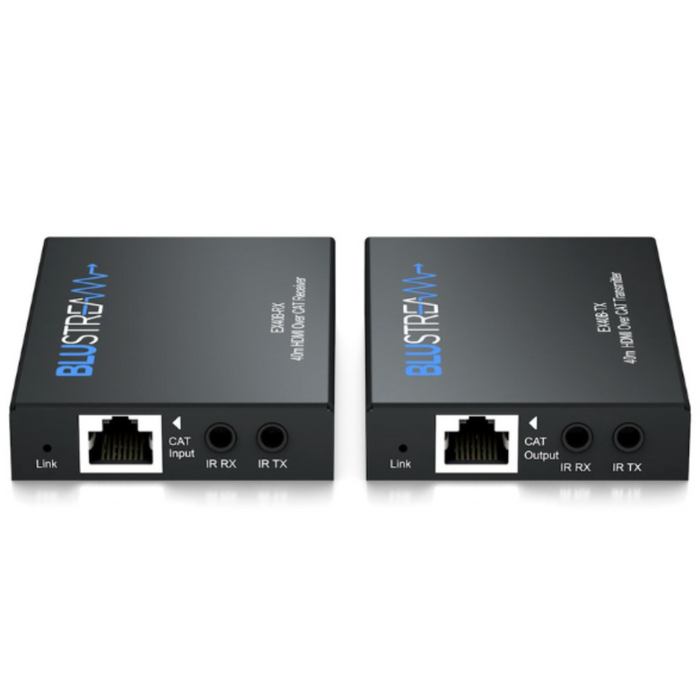

    - EX40B-RX: 1 x RJ45

  • Video Output:

    - EX40B-TX: 1 x RJ45

    - EX40B-RX: 1 x HDMI Type A, 19-pin, female

  • IR Input: 1 x 3.5mm stereo jack

  • IR Output: 1 x 3.5mm mono jack

  • Power Supply: 5V/1A DC, screw type connector, one per balun required

  • Dimensions With Connections (W x H x D): 58 x 15 x 96mm

  • Shipping Weight: 0.5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Mounting Kit Included
