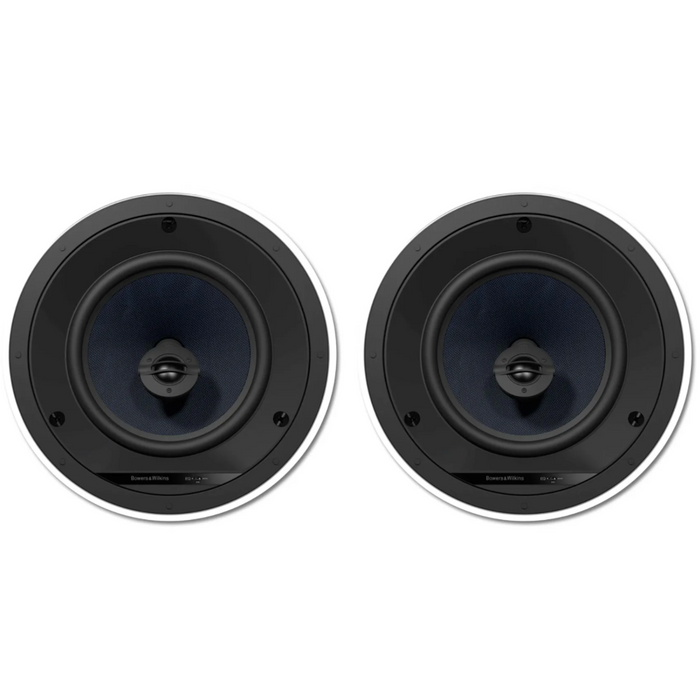

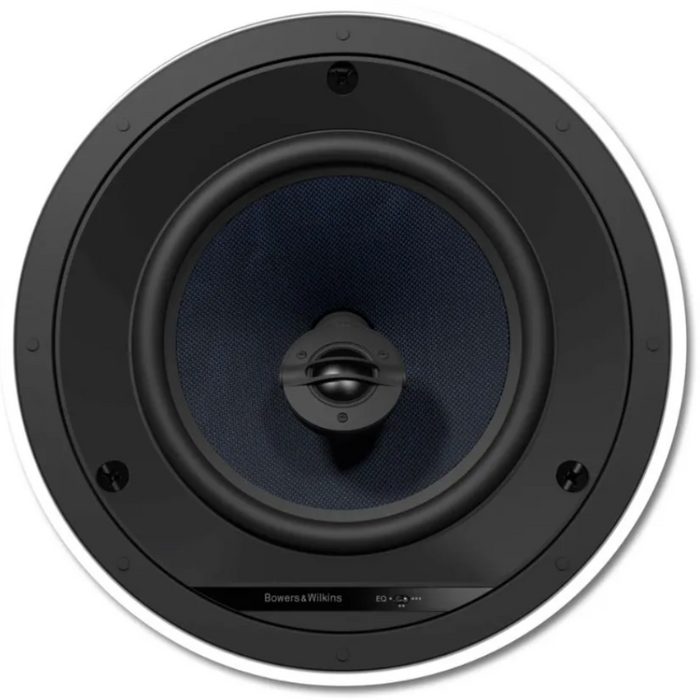

Bowers & Wilkins CCM683 In-Ceiling Speakers

The Bowers & Wilkins CCM683 delivers premium in-ceiling audio with precision engineering designed for seamless room integration. Featuring a 6.5-inch woofer and 1-inch tweeter, these speakers produce balanced, detailed sound across a wide frequency range. The rigid cabinet construction minimizes resonance, while the pivoting tweeter allows directional tuning for optimal listening positions.

Ideal for multi-room audio systems, home theatre installations, or distributed music throughout your space. Engineered for reliability and sonic excellence in any ceiling application.

Performance two-way in-ceiling speaker

The CCM683 is a true high-performance ceiling-mount speaker. The speaker features a 200mm (8in) woven blue Aramid Fibre cone bass/midrange driver and an aluminium tweeter in a neat circular die-cast chassis. The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis provides extra rigidity that results in a cleaner, faster bass.

• 1x ø200mm (8in) blue Aramid fibre cone bass/midrange
• 1x ø25mm (1in) NautilusTM swirl loaded pivoting aluminium dome tweeter
• Recommended Amp Power: 25 – 130w
• Sensitivity SPL (2.83V, 1m): 88 dB
• Impedance Nominal (min): 8Ω (4.5Ω)
• Diecast chassis and 3-position EQ switch
• Frame diameter: 290mm (11.4in)
• Cut-out diameter: 250mm (9.8in)
• Depth behind surface: 133mm (5.2in)
• Optional Square Grille Cover GR68SQ
