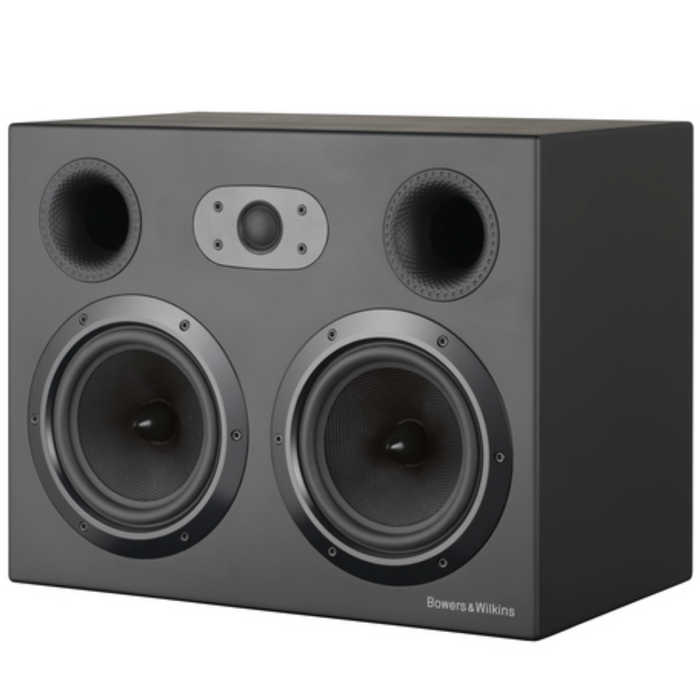

Bowers & Wilkins CT7.4 LCRS Custom Home Theatre Speaker

Custom Theatre two-way vented- box speaker

The Bowers & Wilkins CT7.4 LCRS is engineered for seamless integration into custom home theatre installations.

The mid-point in the range, the CT7.4 LCRS offers superior performance at lower frequencies through its two 6in Aramid Fibre CT700 series bass/midrange drive units. The result is extraordinarily lifelike, dynamic movie sound quality.

Specifications

Technical features: Nautilus™ tube loaded tweeter Aramid Fibre bass/midrange cone Flowport™ Magnetically attached grille

Description: 2-way vented-box system

Drive units: 1x ø25mm (1 in) cloth dome high-frequency 2x ø165mm (6.5 in) woven Aramid Fibre cone bass/ midrange

Frequency range: -6dB at 43Hz and 28kHz

Frequency response: 49Hz – 22kHz ±3dB on reference axis

Dispersion: Within 2dB of reference response Horizontal: over 60º arc Vertical: over 10º arc

Sensitivity : 94dB spl (2.83V, 1m)

Harmonic distortion : 2nd and 3rd harmonics (90dB, 1m) <1% 90Hz – 20kHz

Nominal impedance: 8Ω (minimum 4.0Ω)

Crossover frequency : 4kHz

Recommended amplifier power : 50W – 150W into 8Ω on unclipped programme

Max. recommended cable impedance: 0.1Ω

Dimensions: Height: 343mm (13.5 in) Width: 444mm (17.5 in) Depth: 265mm (10.5 in) Depth with grille: 288mm (11.3 in)

Net Weight: 15.75kg ( 34.7lb

Finishes: Cabinet Black painted Grille Black cloth
