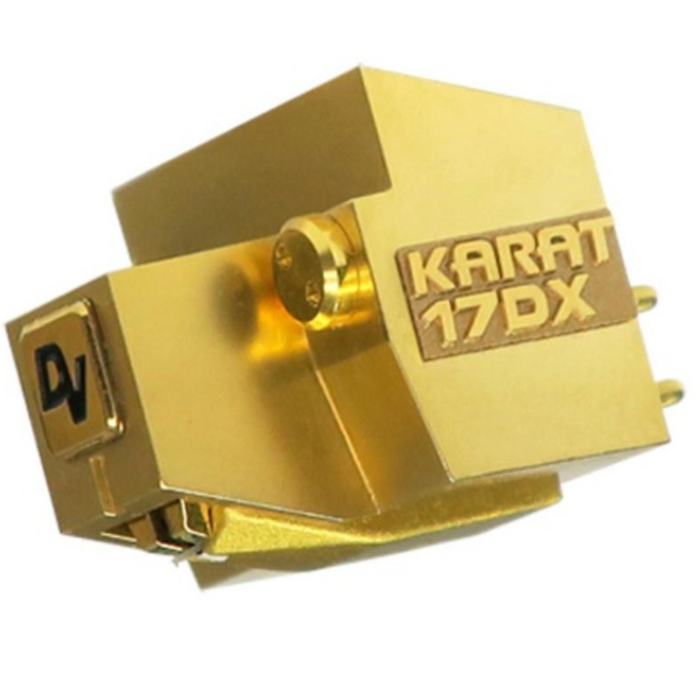

Dynavector DV-17DX MC Cartridge

Write a review
Original price $3,145.00 - Original price $3,145.00
Original price
$3,145.00
$3,145.00 - $3,145.00
Current price $3,145.00

Dynavector DV-17DX MC Cartridge

Features

  • Micro-ridge stylus
  • 1.7mm solid diamon cantilever
  • Magnetic flux damping

Drawing on Dynavector’s  'dispersion theory' that produced the original world first KARAT series Dynavector are indeed proud to announce the entirely new 17DX KARAT Diamond phono cartridge. As in the past KARAT series, the frequency response of the new KARAT 17DX at 20 to 20,000 Hz is ruler flat providing an extremely accurate groove tracking ability. However, several new features will ensure that the new 17DX will shortly gain the same legendary status and soon surpass its predecessors.

Features and Improvements

The rationale for the new KARAT 17DX was to significantly improve upon the now legendary original KARAT series. After exhaustive listening and technical research, the decision was made to incorporate a body machined from solid brass, Samarium-cobalt magnets for lower magnetic resistance, unmatched coil winding techniques, the incredible 1.7mm long cantilever with Micro Ridge stylus all combining in a brand-new KARAT 17DX that will delight the listener, providing clear and articulate reproduction of analog recordings without a hint of harshness in the high frequency range.


construction of Karat17D MC Cartridge?


1.7mm length Diamond stylus
1.7mm length Diamond cantilever is much smaller than conventional cantilever


Karat17D3 MC Cartridge showed response

Karat 17DX showed a ruler flat response from 100 Hz to 30KHz of under ± 0.5 dB



Specifications
Type  Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage  0.3mV (at 1KHz, 5cm/sec.)
Channel Separation  25 dB (at 1KHz)
Channel balance  1.0 dB (at 1KHz)
Frequency response  20 – 20,000Hz (± 1dB), 20 – 100,000Hz
Compliance  15 x 10-6 cm/dyn
Tracking force  1.8 – 2.2grams
DC resistance  R=38 ohms
Recommended load
resistance
 > 100 ohms
Cantilever  1.7mm length, 0.25dia solid diamond
Stylus  Micro-Ridge
Weight  11 grams
