Dynavector DV-20X2 Turntable Cartridge

0 Reviews

Dynavector

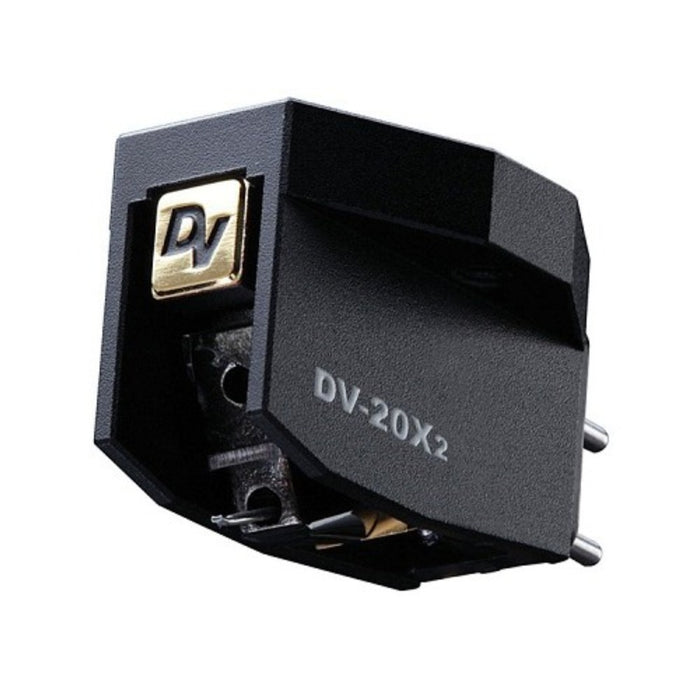

Dynavector DV-20X2 Turntable Cartridge

DV-20X has a solid aluminum alloy body and a rigid magnet construction similar to XX-2MKII. The cantilever is a 6mm length of hard aluminum pipe with a Micro-Ridge stylus. The magnetic flux damping and softened magnetism along with powerful neodymium magnets gives the 20X2H a healthy 2.8 mV output – suitable for most MM inputs. The 20X2L has an output of 0.3 mV ideal for most MC phono stages.

Both high and low versions of their 20X2 are available ensure for the optimum end result. The high output model is well suited to valve preamplifiers or electronics that only offer MM inputs whilst the low output version offers superb performance when combined with dedicated moving coil inputs.

Type: High/Low output moving coil cartridge with flux damper and softened magnetism

Output Voltage  2.8mV / 0.3mV (at 1KHz, 5cm/sec.)

Channel Separation  25 dB (at 1KHz)
Channel balance   1.0 dB (at 1KHz)
Frequency response  20 - 20,000Hz (± 2dB)
Compliance  12 x 10-6 cm/dyn
Tracking force  1.8 - 2.2grams
DC resistance   150 ohms / 5 ohms
Recommended load
resistance  > 1Kohms / > 30 ohms
Cantilever   6mm length, hard aluminium pipe
Stylus  Micro-Ridge
Weight  8.6 grams
