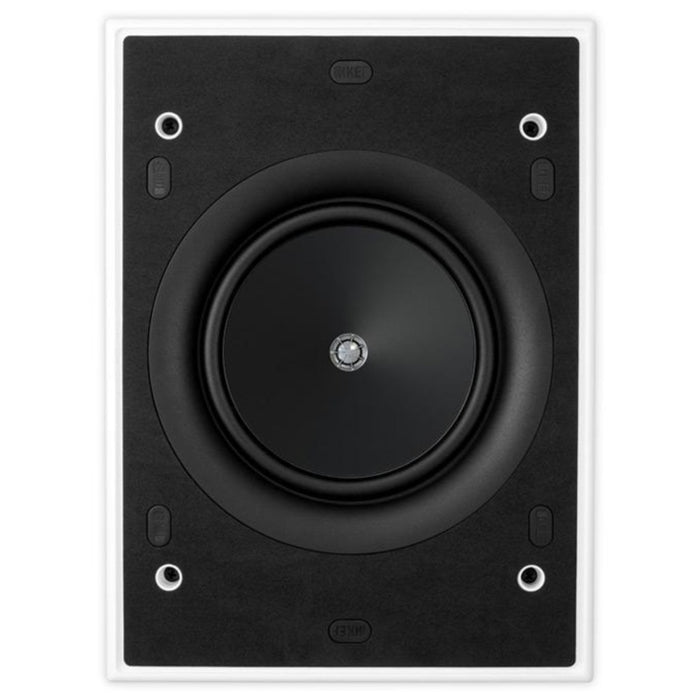

KEF Ci160.2CL In-Wall Speaker

0 Reviews

KEF


KEF Ci160.2CL In-Wall Speaker

In-wall speaker features KEF’s patented Uni-Q driver array that allows sound to disperse more evenly throughout the room.

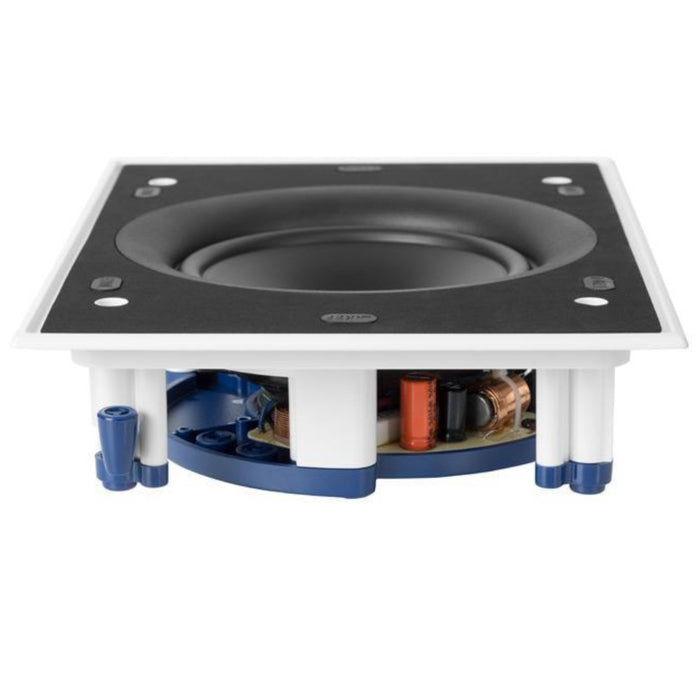

The extremely shallow mounting depth allows you to install the Ci160.2CL where other speakers in its class won’t fit.
Ci-C Series offers an ideal introduction to the world of custom installation speakers. Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the C Series fits unobtrusively into your home.

Key Features

  • UTB™ Ultra-Thin Bezel
  • 160mm (6.5in.) Uni-Q driver
  • 16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide

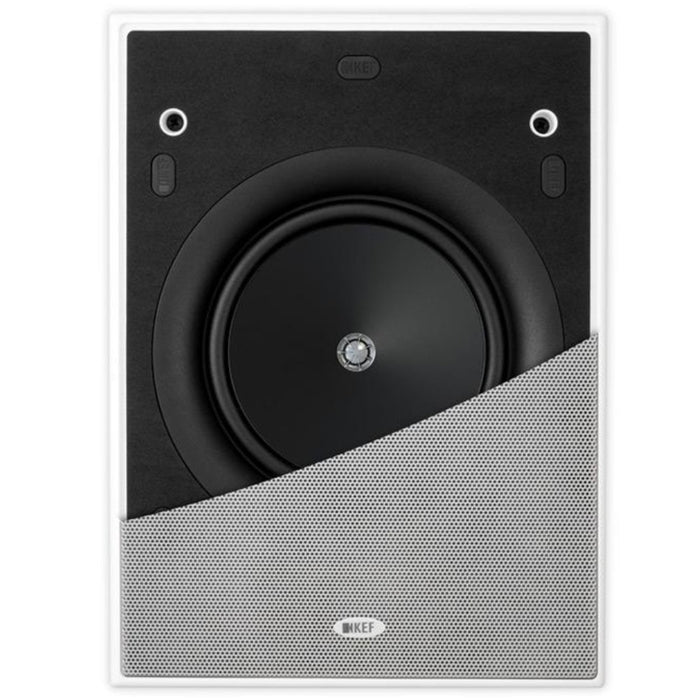

  • Magnetic grille
  • Paintable grille and bezel
  • Weather Resistant
  • IP64 certified



NOMINAL IMPEDANCE

8 Ohms

SENSITIVITY

89dB (2.83V/ 1m)

FREQUENCY RESPONSE

52Hz-20kHz (+/-6dB) open-backed

CROSSOVER RESPONSE

2.5kHz

DRIVE UNITS

LF: 160mm (6.5in.) Uni-Q
HF: 16mm (0.6in.)

RECOMMENDED AMPLIFIER POWER

10-100W

PRODUCT EXTERNAL DIMENSIONS (H X W X D)

303 x 223 x 88.7 mm (11.93 x 8.78 x 3.49 in.)

CUT-OUT DIMENSIONS (H X W)

H x W: 274 x 194 mm (10.79 x 7.64 in.)

MOUNTING THICKNESS

Ceiling Thickness (Maximum): 30mm (1.19 in.)
Ceiling Thickness (Minimum): 3mm (0.12 in.)


MOUNTING DEPTH FROM SURFACE

84.5mm (3.33in.)

OPTIONAL ROUGH IN FRAME

RIF160L

OPTIONAL REAR ENCLOSURE

RNC160L
NET WEIGHT 1.6kg (3.5lbs)

UNIT MEASUREMENT

Piece
