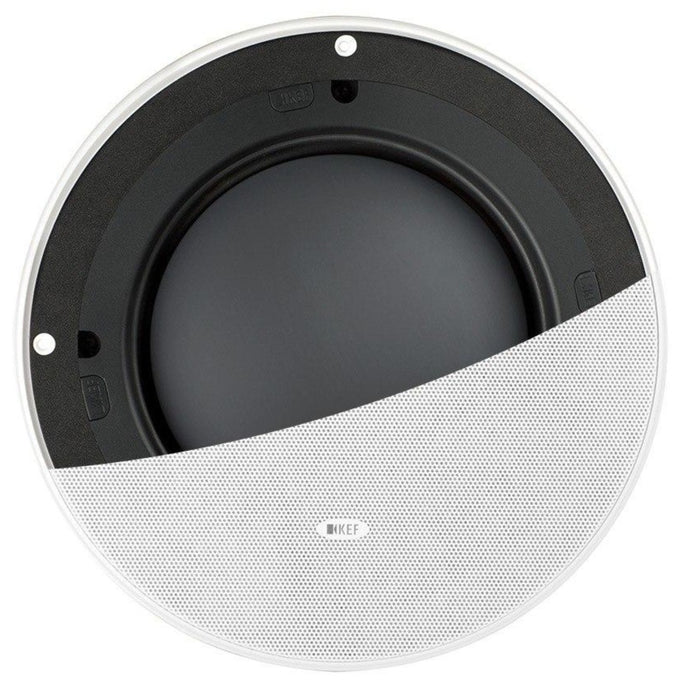

Boasting a formidable 200mm (8in.) subwoofer incarnation of our ultra-thin T Series woofer driver, the Ci200TRb opens up new possibilities for enjoying KEF’s uncompromisable sound quality where installation space is at a premium.
Requiring less than 59mm (2 3/8 in.) of mounting depth, the Ci200TRb fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and super-premium motor yachts.
When used in passive mode, the Ci200TRb adds impressive depth of bass when matched with our Ci160TR round or Ci160TS square speakers. In active mode, powered by KEF’s KASA500 System Amplifier, the Ci200TRb delivers thunderous output expected from a subwoofer in today’s dynamic home theatres.
|NOMINAL IMPEDANCE||2 x 8Ω - Stereo Mode
16Ω - Mono Mode
|SENSITIVITY||87dB (2.83V/ 1m)|
|FREQUENCY RESPONSE||42Hz-120Hz - Passive
32Hz-120Hz - With Kasa500
|DRIVE UNITS||LF: 200mm (8 in.)|
|RECOMMENDED AMPLIFIER POWER||10-125W - Passive
KASA500 - With Kasa500
|PRODUCT EXTERNAL DIMENSIONS||Diamater: 290 mm (11.42 in.)
Depth: 63mm (2.48 in.)
|CUT-OUT DIMENSIONS||H x W: 240mm (9.45 in.)|
|MOUNTING DEPTH FROM SURFACE||59mm (2.32 in.)|
|OPTIONAL ROUGH IN FRAME||RIF200R|
|OPTIONAL REAR ENCLOSURE||RNC200R|
|NET WEIGHT||1.7kg (3.75 lbs)|
Ci Series Pamphlet
Ci Series Specifications Sheet
Ci Series Minimum Cabinet Volume Chart
EASE GLL Data (Mono)
EASE GLL Data (Stereo)
