Now with Metamaterial Absorption Technology
The Reference has continually set the benchmark for loudspeakers since its launch in 1973. The perfect reproduction of recorded sound is what The Reference has always stood for. Pioneering the use of digital technologies to achieve the highest audio accuracy, every pair of The Reference series can be matched within half a decibel to the laboratory-maintained reference standard. Exact pair matching delivers perfect stereo reproduction, so these revolutionary speakers won acclaim for the superior acoustic precision. Hence the method became the name: The Reference.
Since the first generation, The Reference has been continuously enhanced by new innovations and technological developments. In the latest evolution, The Reference incorporates our latest innovation: Metamaterial Absorption Technology1(MAT™) and continues to be the supreme expression of KEF’s philosophy, where advanced engineering meets inspired design.
The Reference are loudspeakers for serious audiophiles who aspire to the perfect enjoyment of music and movies. Whether used in a traditional two-channel HiFi or a multi-channel home theatre, listeners will be able to experience the realistic, immersive sound with breath-taking dynamics, and levels of accuracy that reveal details never noticed before.
A class apart

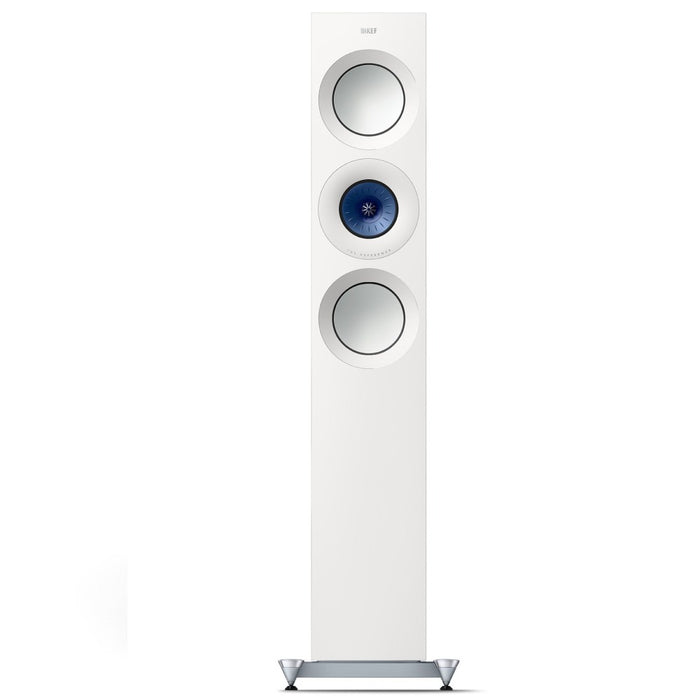

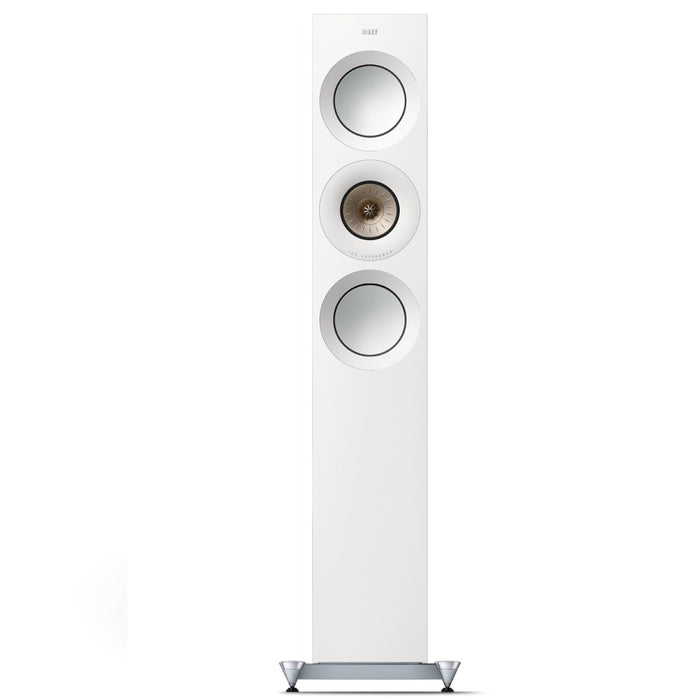

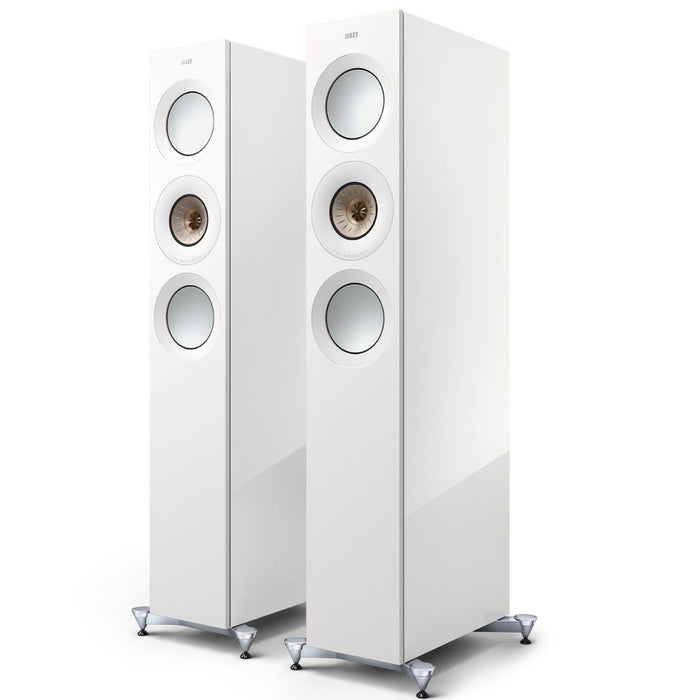

The Reference range encompasses two three-way floorstanding speakers, a formidable three-way standmount speaker, and two three-way centre speakers that can be used as Left-Centre-Right (LCR)speakers. The Reference combines phenomenal high-fidelity performance with complete multi-channel versatility.
And now new technological advances make The Reference range even more impressive. At the heart of TheReference range now sits a bespoke 12th generation Uni-Q with MAT driver array. This new addition truly puts The Reference range in a class of its own.
Revolutionary sound absorption with MAT™
A truly revolutionary tool in the KEF acoustic armoury, Metamaterial Absorption Technology (MAT) is a highly complex maze-like structure, where each of the intricate channels efficiently absorbs a specific frequency.When combined, the channels act as an acoustic black hole, absorbing 99% of the unwanted sound that comes from the rear of the tweeter, eliminating the resulting distortion and providing a purer, more natural acoustic performance.
A result of joint development with the Acoustic Metamaterials Group, using MAT breaks completely new ground in loudspeaker design, and once again demonstrates KEF’s unrelenting passion for developing new technologies to improve your listening experience. Metamaterials are specially developed structures that use existing materials in such a way that they exhibit new, desirable properties that are simply not found in naturally occurring substances.
12th Generation Uni-Q with MAT™ delivers
The 12th generation Uni-Q with MAT in The Reference is a bespoke driver array engineered to deliver pristine performance across this exceptional range of loudspeakers. It’s the result of decades of accumulated in-house knowledge and the application of cutting-edge simulation and analysis tools. The developments are many and all play a part in The Reference’s pristine performance.
As a starting point, KEF engineers re-engineered the tweeter gap damper to maximise the space at the back of the tweeter for the new metamaterial absorber. Optimising the cavity shape and strategically placing two rings of porous material effectively tame the resonances and imperfections, thus greatly improving detail and clarity.
A new ultra-low distortion midrange motor design uses a copper ring embedded into the motor gap to minimise inductance and variation of inductance with coil position. This lowers the midrange THD and reduces thermal compression, leading to improved efficiency.
The Uni-Q driver array is fully decoupled to prevent unwanted vibrations from muddying the sound. A new flexible decoupling chassis is designed to reduce vibration and remove coloration. It ensures that any vibration generated by the mid and high-frequency motor system is not transmitted to the loudspeaker cabinet.
A new driver surround is designed to allow longer excursion without causing diffraction and extending the frequency range of the mid-frequency. Plus, the contours of the dome, midrange horn and surround are all computer-optimised to ensure a perfectly smooth transition to the cabinet.
KEF’s patented tangerine waveguide technology manages the airflow to recreate the wide, even spread of a natural sound field, dispersing the astonishingly pure high-frequency imaging throughout the room.
Reference quality bass
High and mid-range frequencies are only part of the story though, and The Reference is also blessed with clean, rich, highly articulate bass. That’s because The Reference’s 165mm (6.5 inch) low frequency driver perfectly complements the new 12th generation Uni-Q with MAT driver array. Smart engineering and meticulous attention to design detail enables the bass to blend seamlessly with the immaculate midrange and treble response.
The Reference’s bass driver also benefits from a massive, vented magnet assembly, a large aluminium voice coil and an exceptionally light and stiff alloy cone. As a result of all these technologies volume, dynamics and power handling are superb.
Engineered to be flexible
The speakers in The Reference range are also welcomingly undemanding in terms of positioning, and are easy to fine-tune for your listening area by using KEF’s innovative Flexible Port Technology, which can reduce port resonance. There are two options of port tubes, allowing users to modify the sound to suit their room. Plus, the flare and profile of each port has been calculated by computational fluid dynamics to avoid turbulent air noise that might colour the sound, another part of the complex jigsaw that is The Reference’s breath-taking performance.
