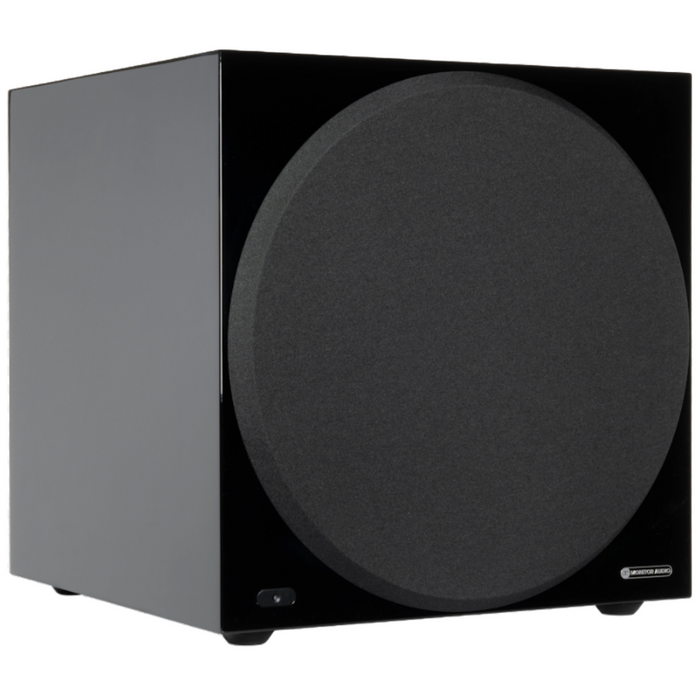

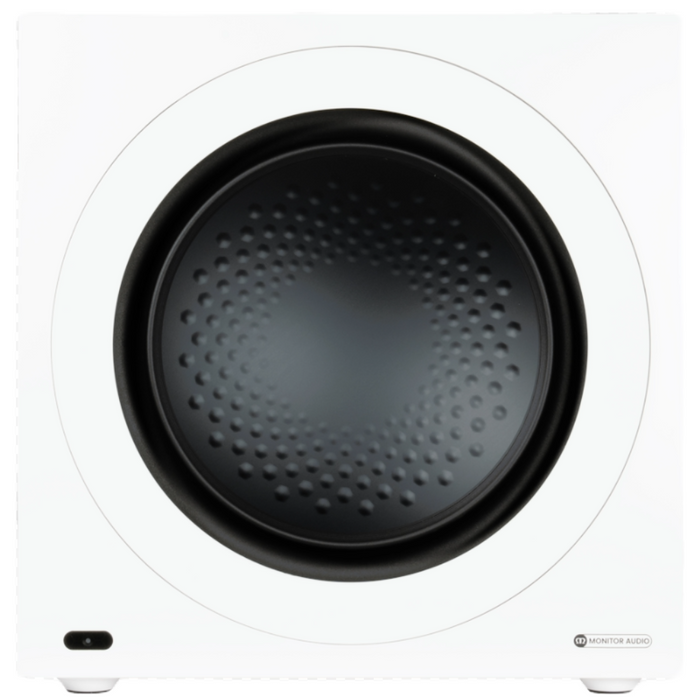

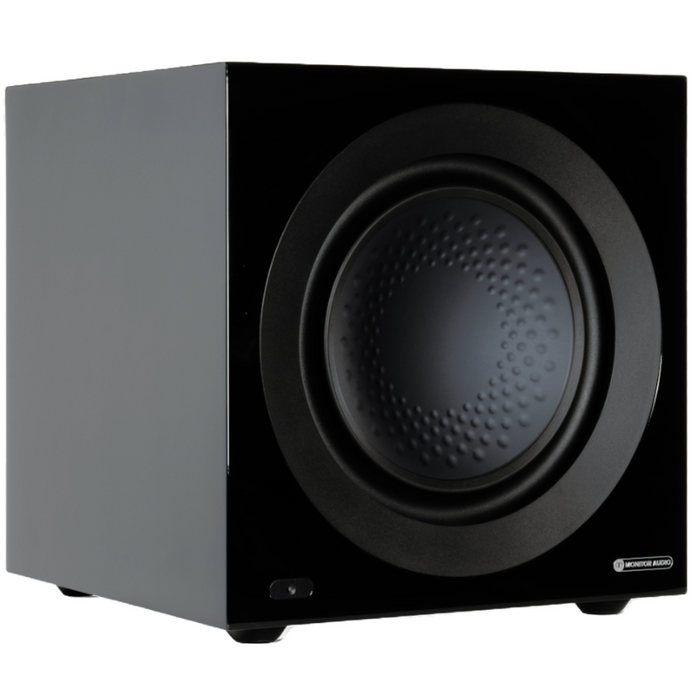

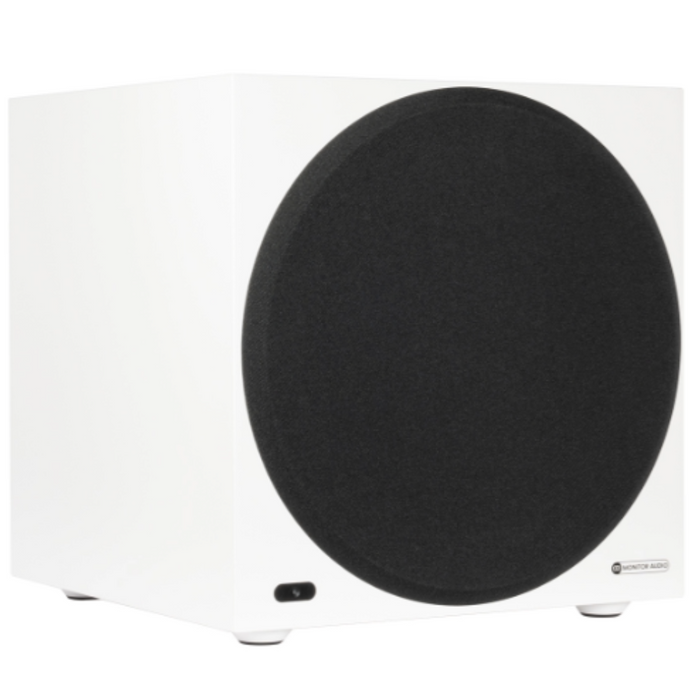

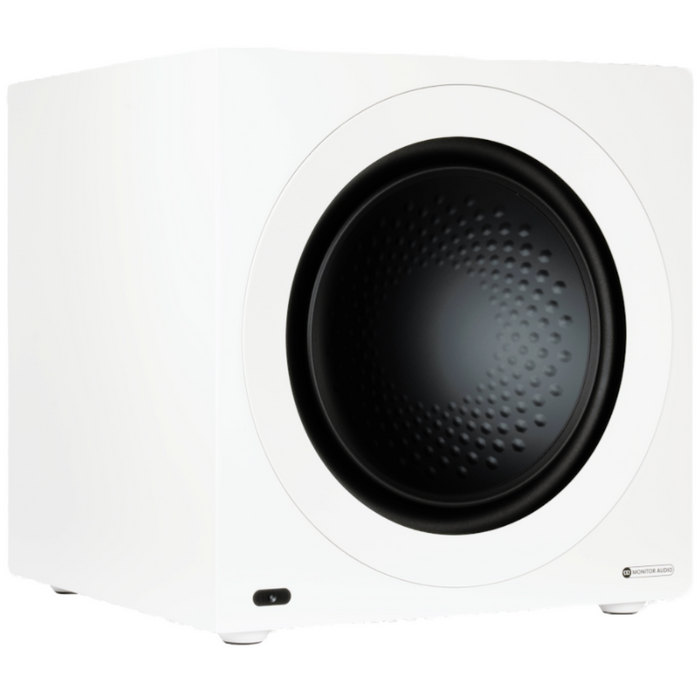

Monitor Audio Anthra W15 Subwoofer

The W15 is the largest subwoofer within the Anthra subwoofer series. It features a 15” (38 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 1,500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet

Engineered to deliver the deepest bass in the largest of spaces, the Anthra W15 subwoofer features a massively powerful 1,500 Watt Class-D amplifier driving a 15” (38cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W15 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

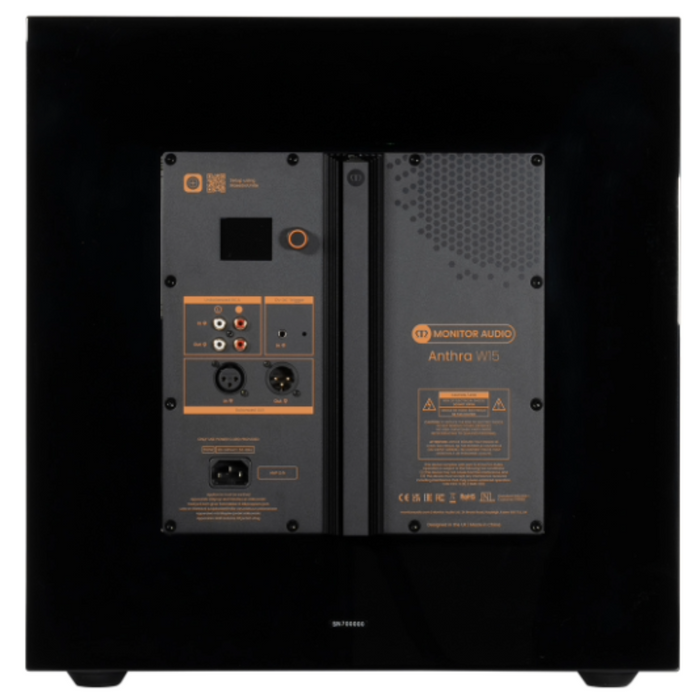

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.

monitor audio anthra w15 subwoofer melbourne hi fi1

Key Features

  • 1 x 15” (38 cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance
  • 1 x 1,500 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
  • Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
  • 2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup
  • RCA inputs (left/right. The left Input is LFE)
  • RCA outputs allows daisy chain of up to 4 Anthra subwoofers
  • XLR inputs for professional installation connectivity option
  • XLR outputs allows daisy chain of up to four Anthra subwoofers
  • Available in Gloss Black and Satin White finishes
monitor audio anthra w15 subwoofer melbourne hi fi



Specifications

System Format:  Active - Sealed Cabinet

Drive Unit Complement:  1x 15" (381 mm) High Linear-Excusion Triple Suspension Driver

Amplifier Classification:  High-Efficiency Class-D

Lower Frequency Limit:  -6dB @16Hz

Upper Frequency Limit:  (LPF Off) -6dB @400Hz

Driver Excursion (pk-pk):  50 mm

DSP:  28 Bit 50 MIPS Configuratable through MaestroUnite

Analogue Digital Conversion:  Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals

Amplifier Output Power, 240Vac:  Instantaneous: 2500 W*,  Continuous short-term: 1400 W**

Amplifier Output Power, 120Vac:  Instantaneous: 2500 W,  Continuous short-term: 1400 W

LED UI Control:  Brightness, On-Off

Phase Control:  0-360 Degrees measured at LPF Crossover

Low Pass Filter:  20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct

Custom EQ:  Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)

Volume Level:  Wide adjustable input gain to allow maximum output from a wide range of input signals

Inputs:  Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)

Mono/LFE Balanced XLR

Outputs:  Stereo unbalanced outputs with unbuffered throughput from RCA Inputs

Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input

Mains Input Voltage:  Universal Mains, 85-265VAC

External Dimensions (without feet) (HxWxD):  439 x 439 x 439 mm

Power Consumption:  550 W

Cabinet Construction:  Braced 25 mm thick MDF with 36 mm front baffle

Grille:  Cloth covered magnetically attached Grilles

Weight:  40.3 kg
