Monitor Audio CP-WT380 In-wall Speaker

by Monitor Audio
Write a review
Save $72.00 Save $72.00
$719.00
$719.00 - $719.00
$719.00
$647.00
$647.00 - $647.00
$647.00

Monitor Audio CP-WT380 In-wall Speaker

Alongside a pivoting C-CAM tweeter, the CP-WT380 model introduces a powerful 8" C-CAM bass driver featuring the Rigid Surface Technology (RST) cone surface employed by our range-topping home audio speaker systems.

Technology

  • Pivoting C-CAM Gold Dome tweeter.
  • C-CAM bass driver featuring Rigid Surface Technology (RST).
  • High overall efficiency.
  • High frequency level adjustment (+/-3 dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

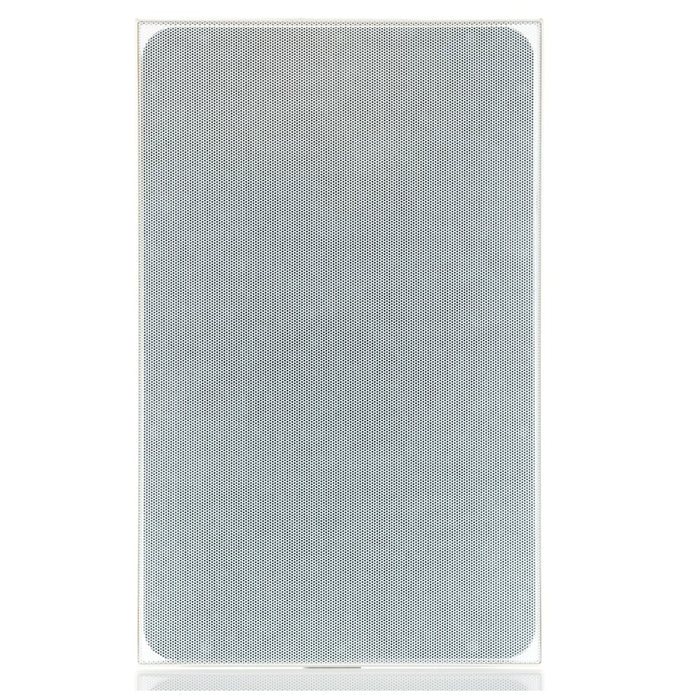

  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.



Specifications
Frequency Response

50 Hz – 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

89 dB

Maximum SPL

109.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 – 120 W

Crossover Frequency

2.5 kHz @ 12 dB / Octave

Drive Unit Complement

2-Way
8" C-CAM RST cone bass driver
1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Dimensions (H x W x D)

472.5 x 303.5 mm (185/8 x 1115/16")

Overall Depth (Including Grille)

106 mm (43/16")

Cut-Out Dimensions

438 x 269 mm (171/4 x 109/16")

Mounting Depth

99 mm (37/8")

Fixing Type

6 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight

4.95 kg (10 lb 14 oz)

Pre-Construction Bracket

WB10 Pre-Construction Bracket (Light Brown)

Sold As

Single Unit
