Monitor Audio Creator Series W3M In-Wall Speaker

Write a review
Original price $1,699.00 - Original price $1,699.00
Original price
$1,699.00 - $1,699.00
Current price $1,699.00

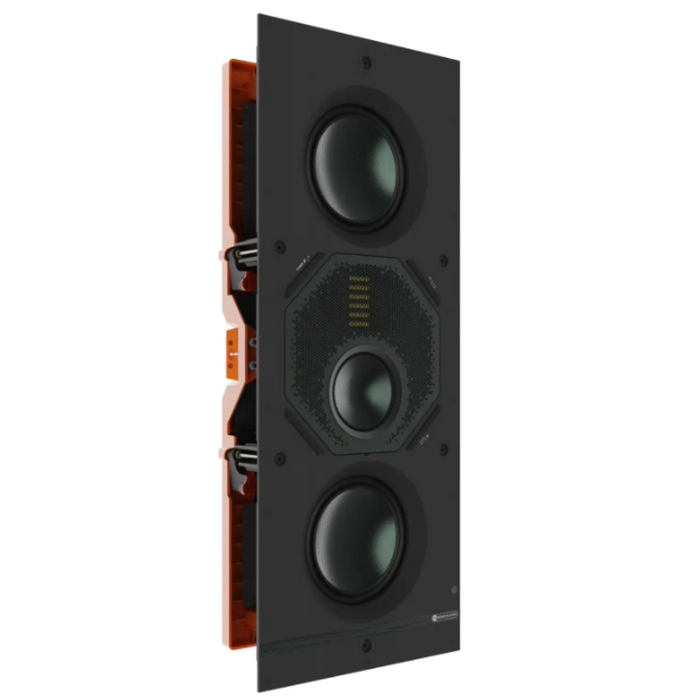

Monitor Audio Creator Series W3M In-Wall Medium Speaker

In-Wall Medium Speaker

A high-performance medium in-wall speakers that has all the engineering qualities of Tier 2, yet offers improved acoustic performance including an MPD II transducer, and adds further features for enhanced speaker placement freedom, such as boundary correction and mid/high-frequency cut/boost, plus leading-edge acoustic technologies.

British High-Fidelity Architectural Sound Redefined

The Creator Series re-writes the rules of custom installation. A smart, tiered range of high-performance, installer-friendly in-ceiling and in-wall loudspeakers that delivers better sound for customers, and enhanced flexibility and clarity for installers.

The application of key Monitor Audio acoustic technologies more usually found in our premium standalone loudspeakers ensures lifelike, pristine sound, while innovative features and a comprehensive, clearly defined range make for hassle-free installation. If you thought you knew custom installation, think again; Creator Series redefines British high-fidelity architectural sound.


  • Three-way arrangement
  • RDT III bass drivers​
  • MPD II Transducer​​
  • Rotating mid-pod​
  • Tri-Grip II ​
  • Quik-Link
  • MDF back-boxes available

Boundary EQ

All the Creator Series in-wall models perform exceptionally well in a variety of locations, including when close to secondary walls. However, as you move up through the tiers, the models feature enhanced technologies such as boundary correction and high and mid-frequency cut/boost that allows them to be placed in trickier locations such as corners. Because sound performance shouldn’t be compromised by placement.

Tri-Grip II

Tri-Grip II is a new dog-leg mechanism that is considerably stronger and more reliable than the previous generation, meaning both speaker placement and extraction could not be simpler.

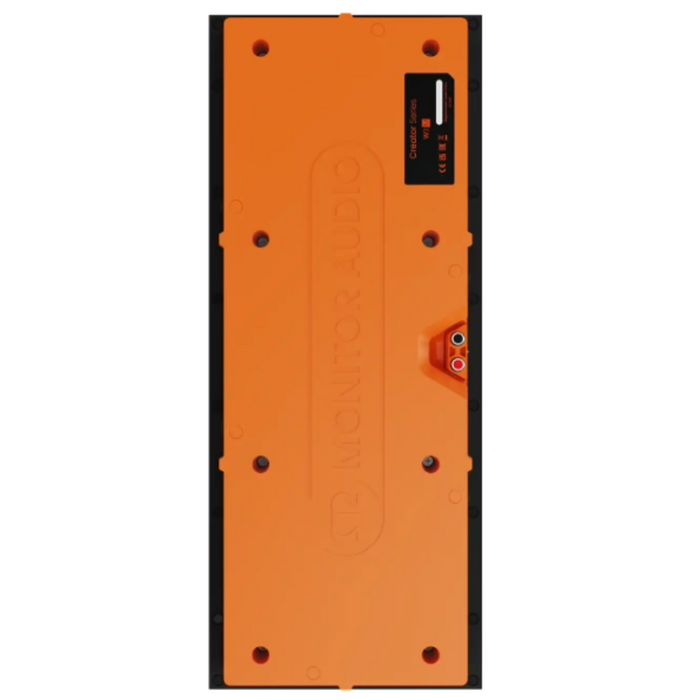

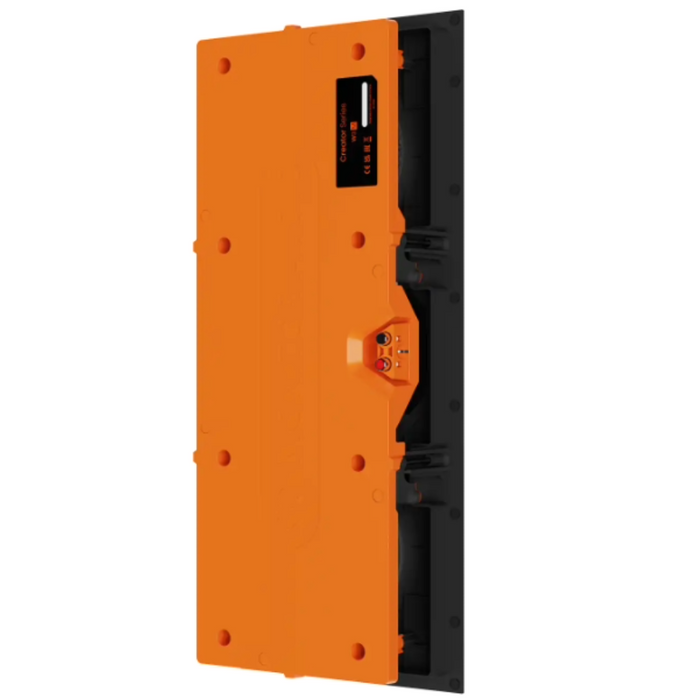

Our new innovative Quik-Link terminal revolutionises speed of installation. With Quik-Link you can make cable connections up the ladder at pre-installation stage. Once the installation is complete, the terminal, which is now connected with the speaker cables, magnetically snaps and locks into place on the rear of the speaker as you place the speaker into ceiling or wall. It’s that easy.

monitor audio creator series w3m in wall speaker melbourne hi fi


  • Drive Units Complement: 2 x 5” RDT III bass driver, 1 x 3” C-CAM midrange driver, 1 x MPD tweeter
  • Nominal Impedance: 6 Ohms
  • Amplifier Requirement: 60 - 225 W
  • Continuous Power Handling: 150 W
  • Sensitivity (2.83v @ 1m): 88 dB
  • Cut Out Size: 527 x 198 mm
  • Mounting Depth: 85 mm
  • Dimensions (Ø x D) inc. grille: 540 x 211 x 90 mm (21 1/4 x 8 5/16 x 3 9/16”)
  • Weight: 4.7 kg (10 lb 6 oz)
