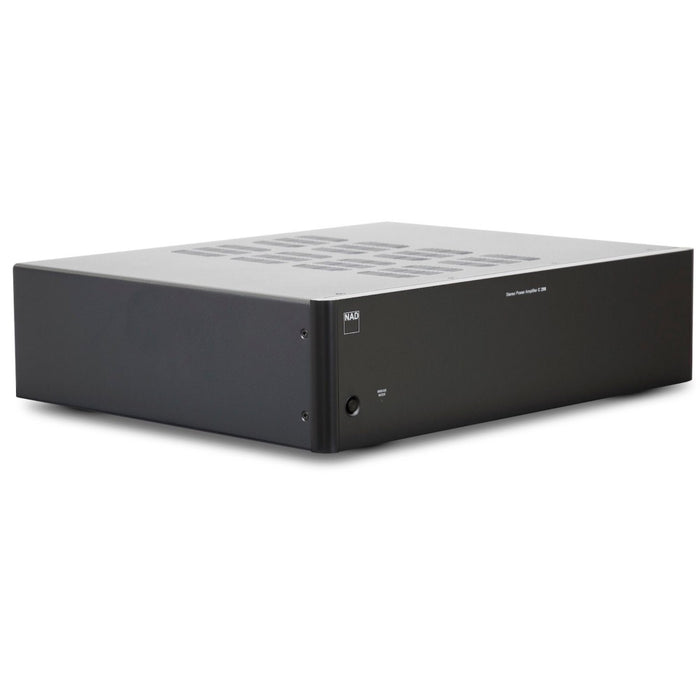

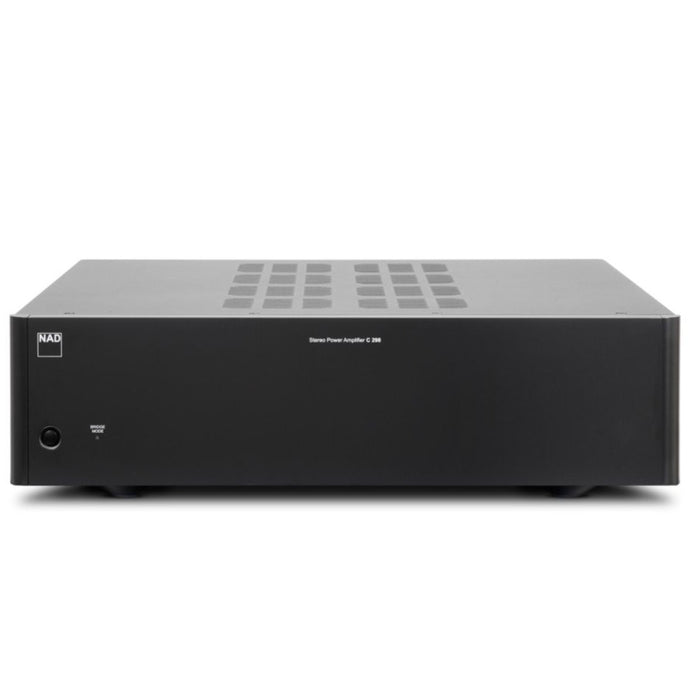

NAD C 298 Stereo Power Amplifier

Redefining the State of the Art with Purifi Technology

NAD has introduced some of the most innovative amplifier technology in its nearly 50 year history, starting with the 3020 on through such cutting edge models as the 2200, the 208, and the M2. Now we are making the amazing new Eigentakt™ (self-clocking) technology, recently introduced to the world in the EISA Award winning Masters M33, available to a wider audience with the very affordable C 298. We are thrilled to provide this unprecedented level of performance. In short, a perfect companion for the C 658 BluOS Streaming DAC pre-amp.

Powerful. Efficient.

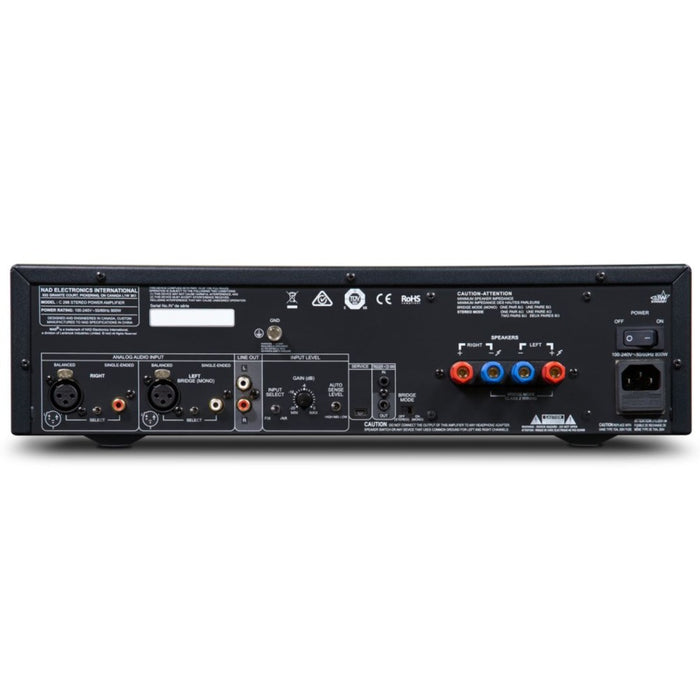

The C 298 may be a basic Power Amp, but we have carefully thought through all the use cases typically encountered to create a rich feature content. Selectable balanced inputs make the C 298 a natural for studio use or connection to High End Preamps and Processors. These inputs include a trim control useful for matching to other components. A line out allows further addition of power on the same channel for additional speakers or subwoofers. Auto-sense with selectable threshold is perfect for automating complex systems or hiding the amp out of sight in a cabinet. We even include a Ground Lug that can be very useful for eliminating ground loops and noise in complex multi-unit systems. Added to all this connectivity is a Bridge Switch that turns the C 298 into an amazingly powerful Monobloc Amplifier. Start with one and add a second C 298 later when you upgrade your speakers.

NAD Electronics C 298 Purifi Stereo Power Amplifier Announced

Getting the Basics Right

It is surprising how many seemingly advanced products in the market today often miss many of the most basic requirements for satisfying performance. Low noise circuits, accurate channel balance, proper input and output impedance characteristics, high overload margins and stability with difficult speaker loads. NAD starts by getting these things precisely right and advances from there. Our line inputs, both Balanced and Single-ended, can accommodate all kinds of analog source components by offering ideal input impedance characteristics with linear ultra-low-noise buffer amplifiers to prevent any sonic degradation caused by inappropriate loading of the source device. These are all details you can hear.

Features

  • 185W x 2 Rated Output Power into 8 Ohms
  • 340W x 2 Rated Output Power into 4 Ohms
  • Stereo Dynamic Power 260/490/570W @ 8/4/2 Ohms
  • 620W x 1 Rated Output into 8 Ohms Bridge Mode
  • Mono Dynamic Power 1000/1100W @ 8/4 Ohms
  • Balanced Line Inputs
  • Single-Ended Line Inputs
  • Input Level Control
  • Line Output for Daisy Chaining
  • 12V Trigger In/Out
  • Auto Turn-on with Selectable Threshold
  • IR In/Out
  • Ground Lug
  • Detachable AC Power Cord



ANALOG AUDIO INPUT/LINE OUT

  • THD (20 Hz – 20 kHz)
  • <0.0005 % at 2V out
  • Signal-to-Noise Ratio
  • >120 dB (IHF; 20 Hz – 20 kHz, ref. 2V out)
  • Channel separation
  • >110 dB (1 kHz)
    >100 dB (10 kHz)
  • Input impedance (R and C)
  • Single-ended: 56 kohms + 280 pF
    Balanced: 56 kohms +280 pF
  • Maximum input signal
  • >7.0 Vrms (ref. 0.1 % THD)
  • Output impedance
  • 390 ohms
  • Frequency response
  • ±0.1 dB (20 Hz – 20 kHz)
  • Maximum voltage output -IHF load
  • ≥>7.0 V (ref. 0.1 % THD)

ANALOG AUDIO INPUT/SPEAKER OUT

  • Rated output power into 8 Ohms and 4 ohms(Stereo mode) 80 W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
  • 185 W at 8 ohms
    340 W at 4 ohms
  • Rated output power into 8 Ohms (Bridge mode, ref. 20 Hz-20 kHz at rated THD, both channels driven)
  • 620 W at 8 ohms
  • THD (20 Hz – 20 kHz)
  • <0.005 % (1 W to 185 W, 8 ohms and 4 ohms)
  • Signal-to-Noise Ratio
  • >98 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
    >120 dB (A-weighted, ref. 185 W out in 8 ohms)
  • Clipping power (Stereo mode, at 1 kHz 0.1 % THD)
  • >200 W
  • Clipping power (Bridge mode, at 1 kHz 0.1 % THD)
  • >690 W
  • IHF dynamic power (Stereo mode, at 1 kHz 1 % THD)
  • 8 ohms: 260 W
    4 ohms: 490 W
    2 ohms: 570 W
  • IHF dynamic power (Bridge mode, at 1 kHz 1 % THD)
  • 8 ohms: 1000 W
    4 ohms: 1100 W
  • Peak output current
  • >25 A (in 1 ohm, 1 ms)
  • Damping factor
  • >800 (ref. 8 ohms 20 Hz – 6.5 kHz)
  • Frequency response
  • ±0.2 dB (20 Hz – 20 kHz)
    -3 dB at 60 kHz
  • Channel separation
  • >100 dB (1 kHz)
    >80 dB (10 kHz)
  • Stereo Mode input sensitivity (for 185 W in 8 ohms)
  • Fixed Gain mode: 1.43 V
  • Stereo Mode Gain
  • Fixed Gain mode: 28.6 dB
  • Line In – Balanced and Single-ended
  • Variable Gain mode: 8.5 dB – 28.5 dB
  • Bridge Mode Sensitivity
  • Fixed Gain mode: 3.78 V for 620 W in 8 ohms
  • Line In – Balanced and Single-ended
  • Variable Gain mode at maximum: 1.41 V for 620 W in 8 ohms
  • Bridge Mode Gain
  • Fixed Gain mode: 25.4 dB
  • Line In – Balanced and Single-ended
  • Variable Gain mode: 14.5 dB – 34.5 dB
  • Standby power
  • <0.5 W

DIMENSION AND WEIGHT

  • Gross dimensions (W x H x D)
  • 435 x 120 x 390 mm (17 1/8 x 4 3/4 x 15 3/8 inches)
  • Net weight
  • 11.2 kg (24.7 lbs)
  • Shipping weight
  • 13.6 kg (30 lbs)
