The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, with minimal colouration.

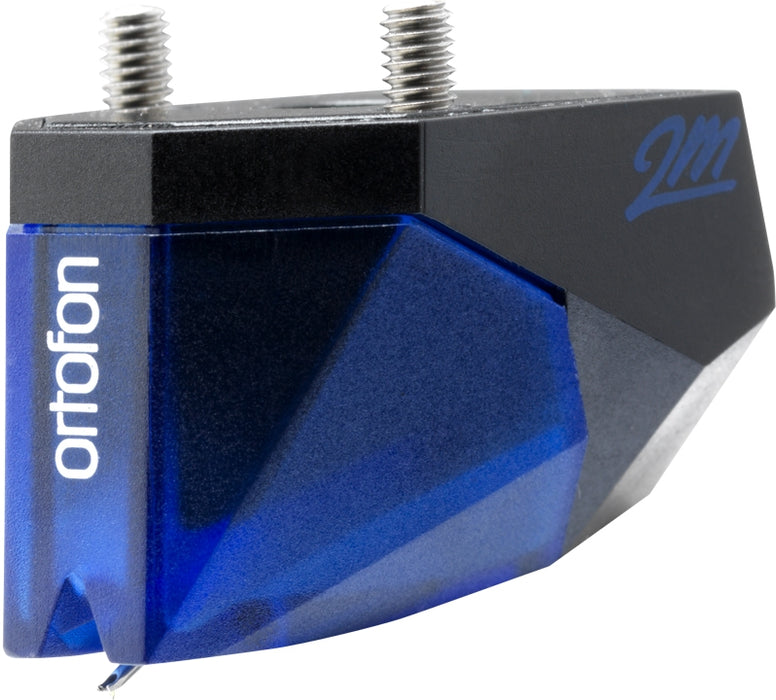

Ortofon moving magnet cartridge
Nude elliptical diamond stylus & split pole pins with a copper wire
Supplied as replacement for faulty/worn stylii on all turntables
Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV Channel balance at 1 kHz - 1.5 dB Channel separation at 1 kHz - 25 dB Channel separation at 15 kHz - 15 dB Frequency range at - 3dB - 20-25.000 Hz Frequency response - 20-20.000 Hz + 2 / - 1 dB Tracking ability at 315Hz at recommended tracking force - 80 µm Compliance, dynamic, lateral - 20 µm/mN Stylus type - Nude Elliptical Stylus tip radius - r/R 8/18 µm Tracking force range - 1.6-2.0 g (16-20 mN) Tracking force, recommended - 1.8 g (18 mN) Tracking angle - 20° Internal impedance, DC resistance - 1.3 kOhm Internal inductance - 700 mH Recommended load resistance - 47 kOhm Recommended load capacitance - 150-300 pF Cartridge colour, body/stylus - Black/Blue Cartridge weight - 7.2 g
