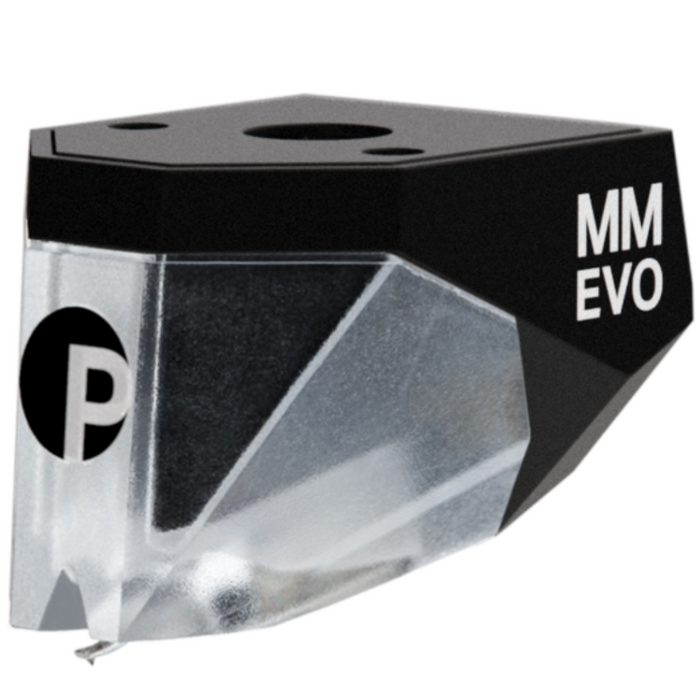

Pro-Ject Pick It MM Evo Moving Magnet Cartridge

CALL FOR AVAILABILITIES.

Next generation MM cartridge

The new Pick it MM EVO

The new superior high dynamic 7mV output Pick it MM EVO cartridge is manufactured by the phono cartridge experts at Ortofon and carefully voiced by the design team at Pro-Ject Audio Systems.

It is equipped with a special elliptical stylus tip. It provides detailed sound reproduction and expansive imaging. It is a no-nonsense performer with fascinating musical resources. Attached to a strong cantilever, used in DJ cartridges, this cartridge will not just sound great, it is also very strong.

The cartridge is made from a unique combination of technologies. One of which is Ortofon‘s well known split pole pins. This enables it to have a flat frequency response, which is comparable to MC cartridges.

Technical Specifications

• Cartridge principle: MM (Moving-Magnet)
• Output voltage: 7 mV
• Channel separation at 1 kHz: 22dB
• Trackability (315 Hz, lateral): 70 µm
• Frequency response: 20 - 20 000 Hz (+3 /-1 dB)
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 μm
• Tracking force, range: 1,6 - 2 g (mN)
• Recommended tracking force: 1,8 g (mN)
• Tracking angle: 20°
• Recommended load resistance: 47 kΩ
• Recommended load capacitance: 150 - 300 pF
• Weight: 7.2g
