Rotel DX-5 Integrated Amplifier
Upgrade your audio experience with the Rotel DX-5 Integrated Amplifier. Expertly crafted with precision and superior technology, this amplifier offers increased power and clarity, delivering a truly immersive sound. With enhanced features and performance, the Rotel DX-5 is a must-have for any audio enthusiast.
LOW STOCK WITH MORE ARRIVING MID JUNE 2025.
The Rotel DX-5 is a sleek, ultra high-performance Personal Audio Integrated Amplifier delivering ultra-high precision Class AB amplification directly to your loudspeakers packaged in an elegant, space-efficient chassis.
Driving 33 watts per channel of Class AB audio into 4 ohm speakers (25 watts into 8 ohms), the DX-5 is ideal for modern lifestyles, offering robust power, versatile connectivity, and advanced audio processing ensuring exceptional sound quality and an immersive listening experience.

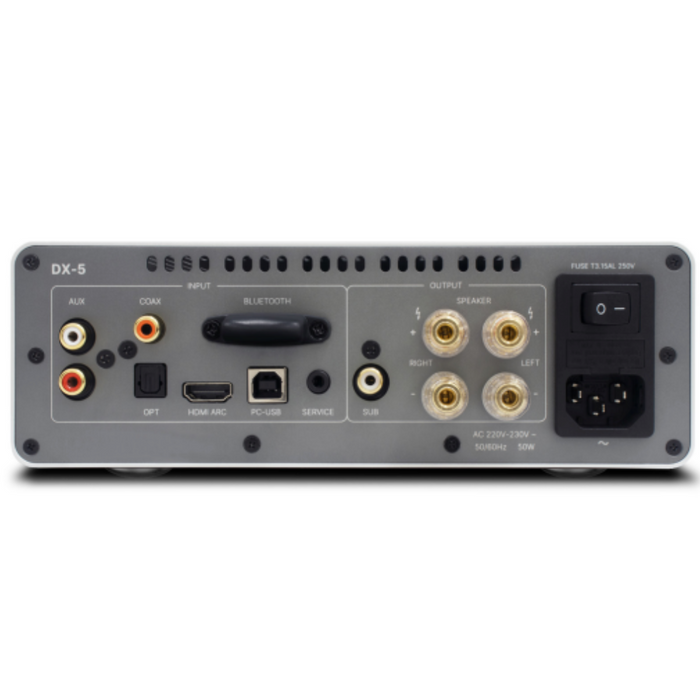

The DX-5 supports an extensive array of sources including PC-USB up to 32-bit/384kHz PCM and DSD 4x (with DoP), Coaxial and Optical digital inputs (up to 24-bit / 192kHz), and aptXTM HD and AAC Bluetooth for high-resolution wireless audio streaming. An RCA analog input provides connectivity to all legacy sources such as CD players and turntables with line level outputs.
HDMI ARC with CEC furthers the versatility of installation options allowing seamless TV audio integration creating a 2.1 home entertainment solution utilising the included subwoofer output. Listen to music, watch movies, connect your game console and enjoy your favourite sports all in high-fidelity.

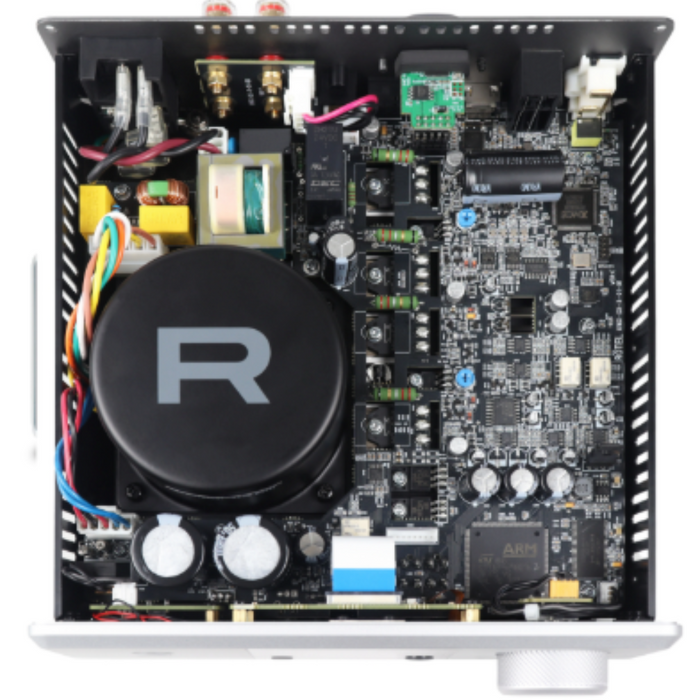

Powered by an in-house factory-wound toroidal transformer driving push-pull high-current output transistors, the DX-5 delivers detailed precision to the midrange, pristine highs and rich, deep, controlled bass. Digital-to-Analog conversion is rendered by a premium 768kHz ESS ES9039Q2M Sabre DAC with an ultra-low noise floor presented on a wide soundstage.

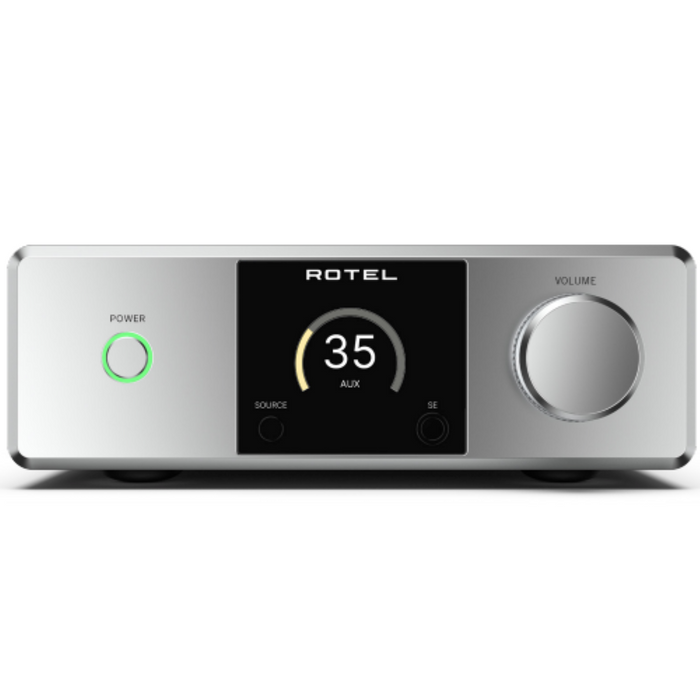

The front panel features a high-resolution full-colour TFT display for intuitive setup and operation, a precision volume control, and a ¼-inch (6.35mm) headphone jack for private listening. The included aluminium remote control extends the unit’s elegance into your hand, ensuring a seamless user experience.
The Rotel DX-5 is the perfect combination of power, performance, and style, making it an excellent choice for music lovers and home entertainment enthusiasts alike.
Specifications
Dimensions (W × H × D)
215 x 76 x 251mm
8 1/2 x 3 x 10"
Front Panel Height
70 mm (2 3/4")
Power Requirements
120 V, 60 Hz
Power Consumption
80 W
Standby Power Consumption
<0.5 W
Net Weight
4.1 kg (9.1 lbs.)
BTU
241 BTU/h
Power Output (FTC)
25 W / ch
Maximum Power Output (Non FTC)
33 W / ch, (1k Hz, 4 Ω)
Continuous Power Output (Non FTC)
25 W / ch, (1k Hz, 8 Ω)
Total Harmonic Distortion
< 0.03%
Frequency Response
10 Hz – 100k Hz (0 ± 0.19 dB)
Damping Factor (20 Hz – 20k Hz, 8 Ω)
140
Input Sensitivity / Impedance
680 mV / 100k Ω
Input Overload
4.2V
S/N Ratio (IHF "A" Weighted)
>100 dB
