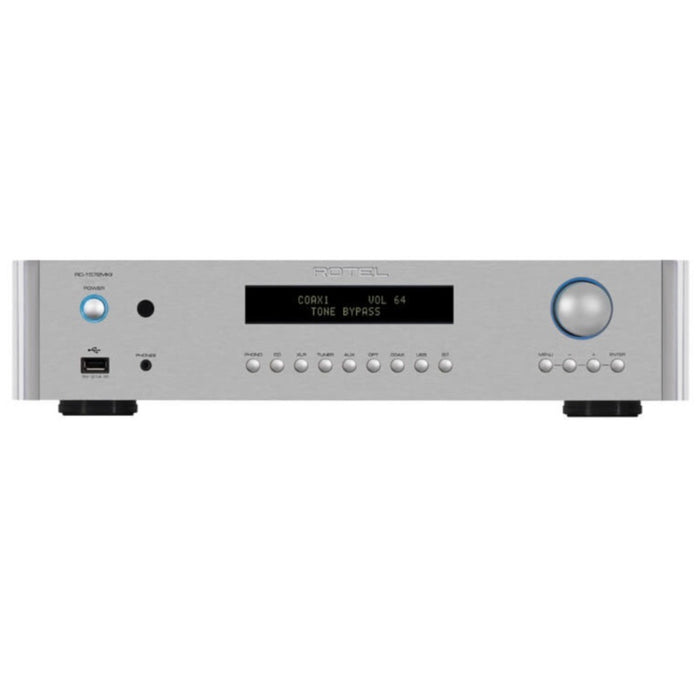

Rotel RC-1572MKII Preamplifier

0 Reviews

Rotel


Type: Amplifiers

Rotel RC-1572MKII Preamplifier

Affordable high-end begins with Rotel’s RC-1572MKII Preamplifier including multiple acoustic upgrades and refinements processing your favourite analog and digital sources to an even higher level of performance in stunning clarity with a natural, enveloping sound stage.

As an essential component in a Hi-Fi audio stack the RC-1572MKII’s precision engineering begins with Rotel’s ultra-low noise power supply including a large, in-house manufactured toroidal transformer. The transformer design reduces stray radiated emissions and feeds a bank of slit-foil, low ESR capacitors delivering stable current to all sensitive circuits reducing noise and distortion with an ultra-quiet noise floor.

A premium Texas Instruments 32-bit Digital to Analog converter (DAC) renders the digital sources supported by custom tuned, proprietary external output filters ensuring the audio is effortlessly presented with exceptional dynamic detail and musical expression.

Analog, Digital, XLR, aptXTM and AAC Wireless Bluetooth and Moving Magnet Phono Stage inputs ensure connection to your favourite music sources. Digital media files are supported via a 32-bit/384kHz PC-USB connection supporting MQA and is fully certified Roon Tested for graceful access to the near limitless catalog of online music.

The RC-1572MKII is easy to operate using the included remote control and front panel display. Automatic power controls, signal sensing, fixed volume settings and tone adjustments optimise customisation settings.

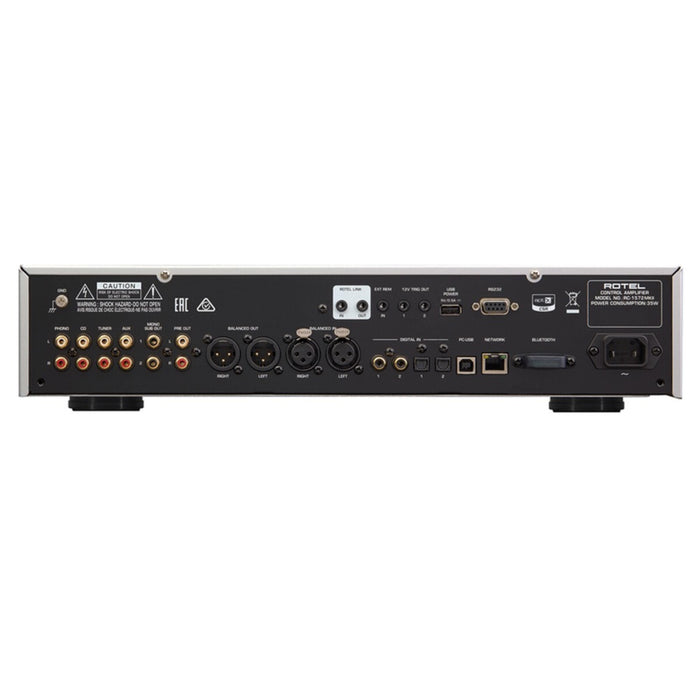

RCA, XLR and subwoofer outputs are provided for installation flexibility. Ethernet and RS232 ensure simple integration with control systems and software updates.

Bring your CD’s, Digital Files and Vinyl allowing the RC-1572MKII to bridge generations of music and music lovers.

Features

  • Balanced XLR inputs and outputs
  • Moving Magnet Phono input for turntable connection
  • Wireless aptX™ and AAC Bluetooth
  • Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
  • Supports MQA and MQA Studio
  • Certified Roon Tested



Weight 7.4 kg Dimensions 33.8 × 43.1 × 9.9 cm Availability

Online, Store

Colour

Black, Silver

Total Harmonic Distortion

(20Hz-20kHz): < 0.004%

Intermodulation Distortion (60Hz : 7kHz, 4:1): < 0.004%

(60Hz : 7kHz, 4:1): < 0.004%

Input Sensitivity / Impedance

Phono Input (MM): 3 mV / 47k ohms;
Line Level Inputs (RCA): 200 mV / 100k ohms;
Line Level Inputs (XLR): 300 mV / 100k ohms

Input Overload

Phono Input: 62 mV;
Line Level Inputs: 4V

Output Level

Line Level (RCA): 1V;
Balanced (XLR): 2V

Frequency Response

Phono Input: 20Hz – 20kHz, (0 ±0.3 dB);
Line Level Inputs: 10Hz – 100kHz, (0 ±0.3 dB)

Tone Controls

Bass: ±10 dB at 100Hz; Treble: ±10 dB at 10kHz

Signal To Noise Ratio (IHF “A” Weighted)

Phono Input: 80 dB;
Line Level Inputs: 110 db;
Channel Separation: > 64 db

Digital Section

Frequency Response: 20Hz – 20kHz (0 ± 0.5dB max);
Signal to Noise Ratio (IHF “A” weighted): 100dB;
Input Sensitivity / Impedance: 0 dBFs / 75 ohms;
Coaxial / Optical Digital Signals: SPDIF LPCM ;(up to 192kHz 24 bit);
PC-USB: USB Audio Class 1.0 (up to 96kHz 24bit).
USB Audio Class 2.0 (up to 384kHz 32bit) – Driver installation required
DSD and DoP support

Power Requirements

USA: 120 volts, 60Hz;
EC: 230 volts, 50Hz;
Power Consumption: 35 watts;
Standby Power Consumption: < 0.5 watts; BTU (at 13.5 watts): 65 BTU/h

Dimensions

(WxHxD): 431 x 99 x 338mm
Front Panel Height: 2U (88.1mm)
Weight (net): 7.4kg
