VTL S-400 Series II Reference Stereo Amplifier

VTL


Type: Amplifiers


For the Series II, VTL, has completely re-worked the entire signal path. Upgrades include a fully balanced differential input stage driving a differential phase splitter and a lower impedance push-pull output stage with a dramatically improved, fully balanced and enhanced interleaved and coupled output transformer. Equipped with the same “SmartTube” technology as the Siegfried II, the S-400 deploys Auto Bias and Fault Sensing, precision-regulated power supply technology, and bi-directional RS-232 control, giving unparalleled flexibility and ease of use.

The S-400 Series II gains further sonic benefits with a shorter, faster and fully balanced negative feedback loop, with zero global negative feedback. The negative feedback loop completely eliminates ringing and requires no capacitor compensation to maintain critical phase integrity and information. The result is an amplifier that remains stable even under the most demanding loads.

Adjustable precision-regulated plate, screen and bias supplies hold the output tube operating point constant even under AC and main power supply fluctuations, and stabilizes the critical power supplies yielding tonal stability and sonic integrity, especially during complex, dynamic signal conditions.

Another new feature is a user adjustable Damping Factor feedback control that allows the user to adjust the amplifier’s output impedance by varying the amount of negative feedback. Impedance can now be precisely set to suit the listener’s taste, and to improve control of the loudspeaker loads to deliver best performance.

The 3 possible settings are:

  1. LOW – Lowest damping factor, good loudspeaker control, most natural sound.
  2. MED – Better loudspeaker control, with some impact on sound quality
  3. HI – Best loudspeaker control, with a little more impact on sound quality, but on speakers that need the control the sonic improvement is clear

Finally, the amplifier has been substantially re-voiced with premium Mundorf silver oil capacitors, for a sweeter, more extended top end and mid range tonality that sounds more relaxed, with better flow and integration. Input stage capacitors are also bypassed.

Even a brief listen to the S-400 Series II Stereo Reference amplifier reveals the successful implementation of the new technology. A lower noise floor creates a velvety black sonic background from which more of the nuances of music can emerge. The soundstage is taller and deeper, yielding better defined and more delineated instrumental images. The mid bass has more authority and control while the critical midrange exhibits a new effortlessness, better reflecting the natural colors and timbres of musical instruments.

Overall, the new amplifier has an uncanny ability to sound quick and agile, yet still possessing the ability to scale up effortlessly, with a sense of almost unlimited power. Listening to music through the S-400 II amplifier is an exciting and invigorating experience.





Vacuum Tube Complement 12 x 6550 or KT-88, 2 x 12AT7, 2 x 12BH7
Output power Tetrode = 300W, Triode = 150W
20Hz – 20kHz <3.5% THD
Into 5Ω
Input sensitivity Variable between 1 – 2V, depending upon DF setting
Input impedance 48kΩ
Load setting
Optimum load range 4Ω – 8Ω
S/N Ratio -90dB, 120Hz
Power consumption Idle = 560W, Full power = 1600W

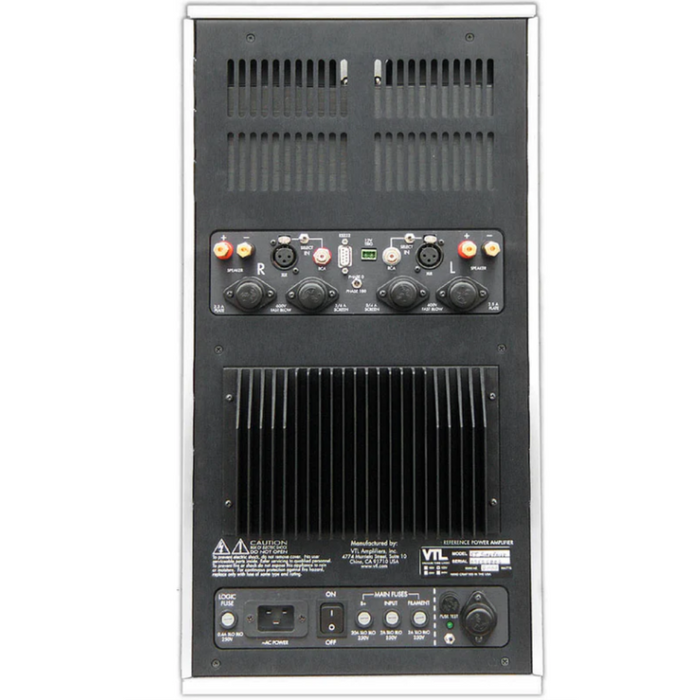

B+ fuse ratings 100/120V = 20A Ceramic Slo Blo, 220/240V = 10A Ceramic Slo Blo
Logic fuse ratings 100/120V = 1A Ceramic Slo Blo, 220/240V = 1A Ceramic Slo Blo
Input fuse ratings 100/120V = 2A Ceramic Slo Blo, 220/240V = 1A Ceramic Slo Blo
Filament fuse ratings 100/120V = 2A Ceramic Slo Blo, 220/240V = 1A Ceramic Slo Blo
Secondary fuse ratings Plate 2.5A Fast acting 600V, Screen 0.75A Fast acting 600V
Dimensions W x D x H 11.5 x 24 x 24 inches (29 x 61 x 61 cm)
Weight Net: 250lbs (113Kg), 350lbs (159Kg)
